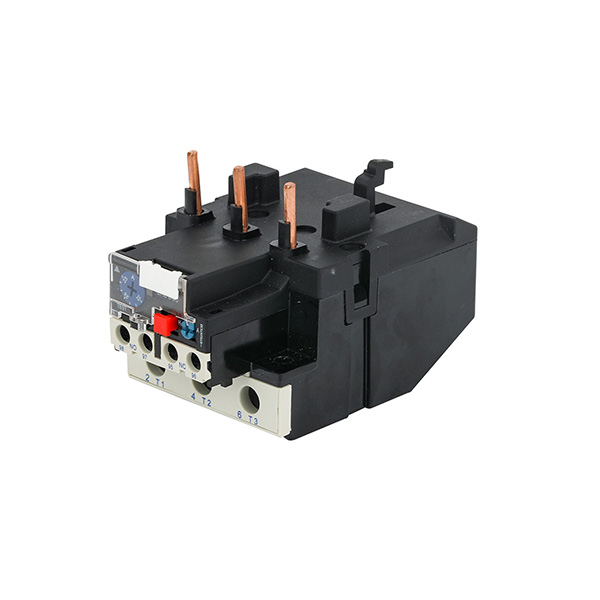

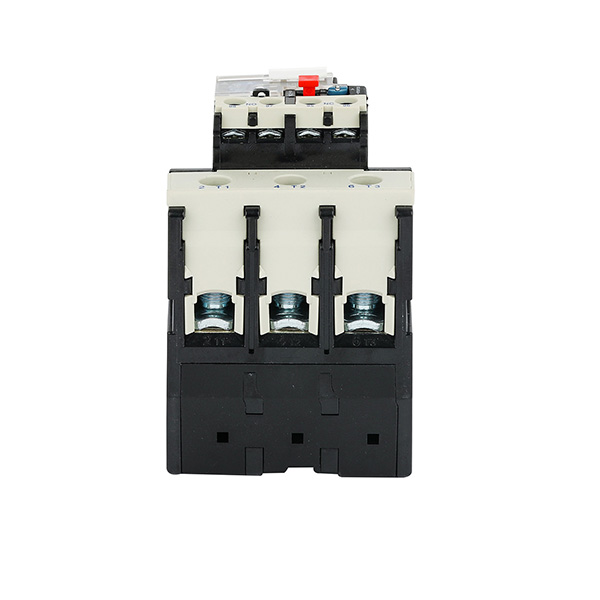

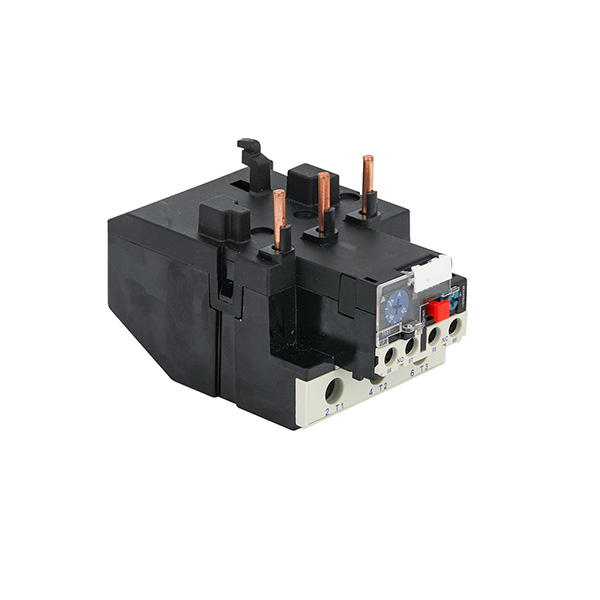

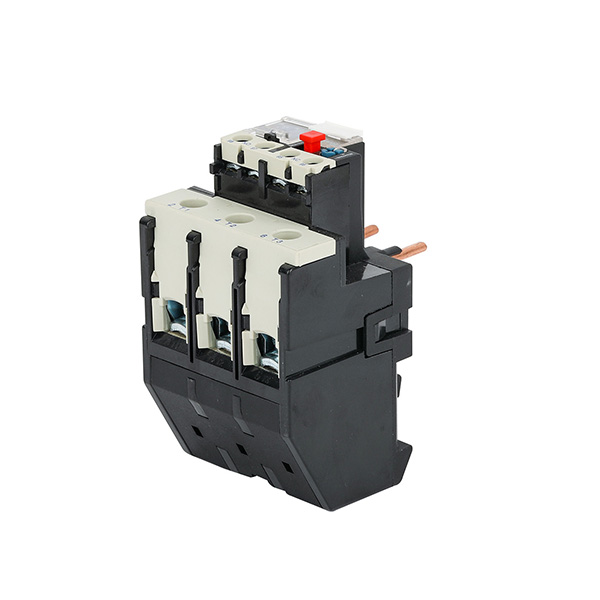

Thermal Relay With Overload Protection JLR2-D33
Motion Characteristic: Three-phase Balance Motion Time
| No |
Times of the setting current(A) |
Motion time |
Start condition |
Ambient temperature |
||
| 1 |
1.05 |
>2h |
Cold state |
20±5°C
|
||
| 2 |
1.2 |
<2h |
Heat state |
|||
| 3 |
1.5 |
<4min |
(Following the No.l test) |
|||
| 4 |
7.2 |
10A | 2s<Tp<10s | <63A |
Cold state |
|
|
10 |
4s<Tp<10s | >63A | ||||
Phase-losing Motion Characteristic
| No |
Times of the setting current(A) |
Motion time |
Start condition |
Ambient temperature |
|
| Any two phases |
Another phase |
||||
| 1 |
1.0 |
0.9 |
>2h |
Cold state |
20±5°C |
|
2 |
1.15 |
0 |
<2h |
Heat state (Following the No.l test) |
|
Specification
|
Type |
Number |
Setting range (A) |
For contactor |
|
JLR2-D13
|
1301 |
0.1~0.16 |
JLC1-09~32 |
|
1302 |
0.16~0.25 |
JLC1-09~32 |
|
|
1303 |
0.25~0.4 |
JLC1-09~32 |
|
|
1304 |
0.4~0.63 |
JLC1-09~32 |
|
|
1305 |
0.63~1 |
JLC1-09~32 |
|
|
1306 |
1~1.6 |
JLC1-09~32 |
|
|
1307 |
1.6~2.5 |
JLC1-09~32 |
|
|
1308 |
2.5~4 |
JLC1-09~32 |
|
|
1310 |
4~6 |
JLC1-09~32 |
|
|
1312 |
5.5~8 |
JLC1-09~32 |
|
|
1314 |
7~10 |
JLC1-09~32 |
|
|
1316 |
9~13 |
JLC1-09~32 |
|
|
1321 |
12~18 |
JLC1-09~32 |
|
|
1322 |
17~25 |
JLC1-32 |
|
|
JLR2-D23
|
2353 |
23~32 |
CJX2-09~32 |
|
2355 |
30~40 |
JLC1-09~32 |
|
|
JLR2-D33
|
3322 |
17~25 |
JLC1-09~32 |
|
3353 |
23~32 |
JLC1-09~32 |
|
|
3355 |
30~40 |
JLC1-09~32 |
|
|
3357 |
37~50 |
JLC1-09~32 |
|
|
3359 |
48~65 |
JLC1-09~32 |
|
|
3361 |
55~70 |
JLC1-09~32 |
|
|
3363 |
63~80 |
JLC1-09~32 |
|
|
3365 |
80~93 |
JLC1-95 |
|
|
JLR2-D43
|
4365 |
80~104 |
JLC1-95 |
|
4367 |
95~120 |
JLC1-95~115 |
|
|
4369 |
110~140 |
JLC1-115 |
