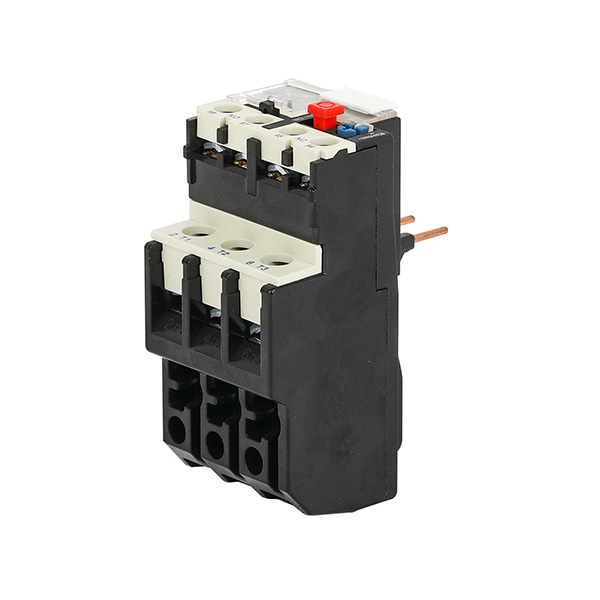

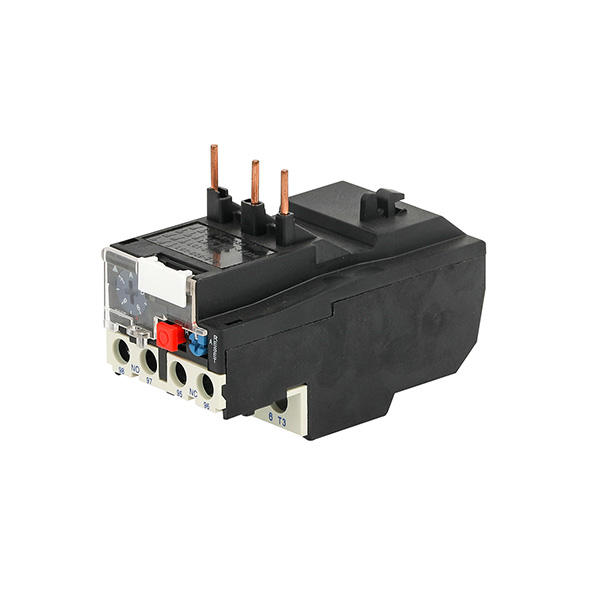

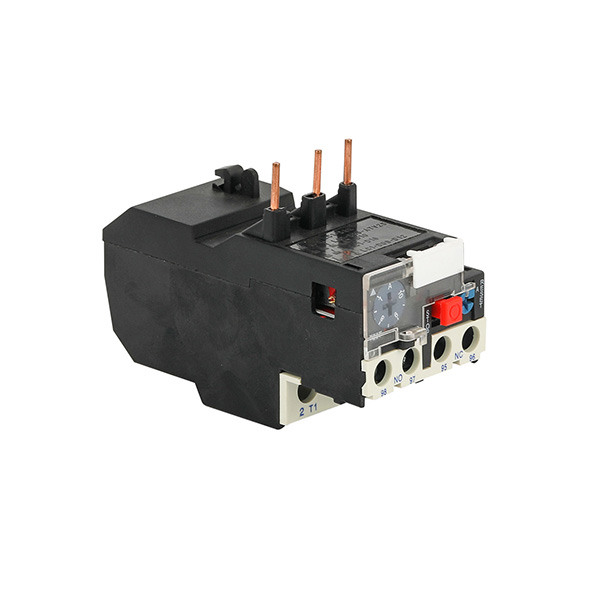

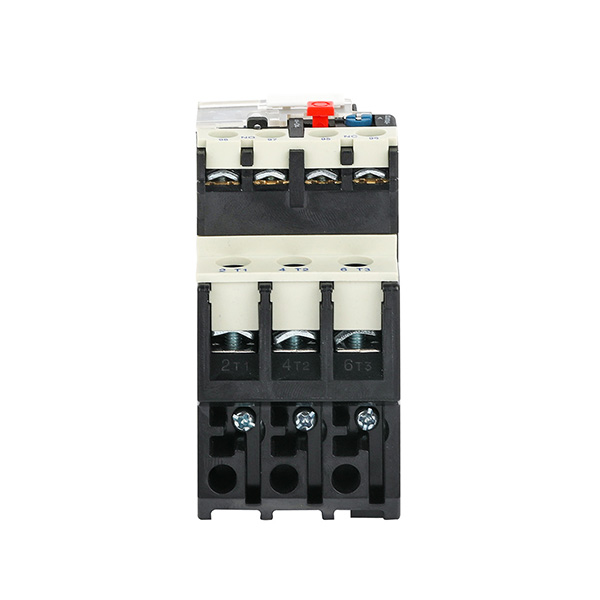

Thermal Overload Relay JLR2-D13

Short Description:

JLR2 series thermal relay is suitable for using in the circuit rated voltage up to 660V, rated current 93A AC 50/ 60Hz, for over-current protection of AC motor. The relay has the differential mechanism and temperature compensation and can plug in JLC1 series AC contactor. The product conforms to IEC60947-4-1 stardand.


Product Detail

More Description

Product Tags

Motion Characteristic: Three-phase Balance Motion Time

No

Times of the setting current(A)

Motion time

Start condition

Ambient temperature

1

1.05

>2h

Cold state

20±5°C



2

1.2

<2h

Heat state

3

1.5

<4min

(Following the No.l test)

4

7.2

10A 2s<Tp<10s <63A

Cold state

10

4s<Tp<10s >63A

Phase-losing Motion Characteristic

No

Times of the setting current(A)

Motion time

Start condition

Ambient temperature

Any two phases

Another phase

1

1.0

0.9

>2h

Cold state

 20±5°C

2

1.15

0

<2h

Heat state

(Following the No.l test)

Specification

Type

Number

Setting range (A)

For contactor











JLR2-D13















1301

0.1~0.16

JLC1-09~32

1302

0.16~0.25

JLC1-09~32

1303

0.25~0.4

JLC1-09~32

1304

0.4~0.63

JLC1-09~32

1305

0.63~1

JLC1-09~32

1306

1~1.6

JLC1-09~32

1307

1.6~2.5

JLC1-09~32

1308

2.5~4

JLC1-09~32

1310

4~6

JLC1-09~32

1312

5.5~8

JLC1-09~32

1314

7~10

JLC1-09~32

1316

9~13

JLC1-09~32

1321

12~18

JLC1-09~32

1322

17~25

JLC1-32

JLR2-D23



2353

23~32

CJX2-09~32

2355

30~40

JLC1-09~32





JLR2-D33









3322

17~25

JLC1-09~32

3353

23~32

JLC1-09~32

3355

30~40

JLC1-09~32

3357

37~50

JLC1-09~32

3359

48~65

JLC1-09~32

3361

55~70

JLC1-09~32

3363

63~80

JLC1-09~32

3365

80~93

JLC1-95

JLR2-D43



4365

80~104

JLC1-95

4367

95~120

JLC1-95~115

4369

110~140

JLC1-115

Outline And Mounting Dimension

product4

Accessories

product5

  • Previous:
  • Next:

  • Application scenarios:
    Usually installed in the distribution box on the floor, computer center,telecommunication room,elevator control room,cable TV room,building control room, fire center, industrial automatic control area, hospital operation room,monitoring room and distribution box equipment with electronic medical device.
