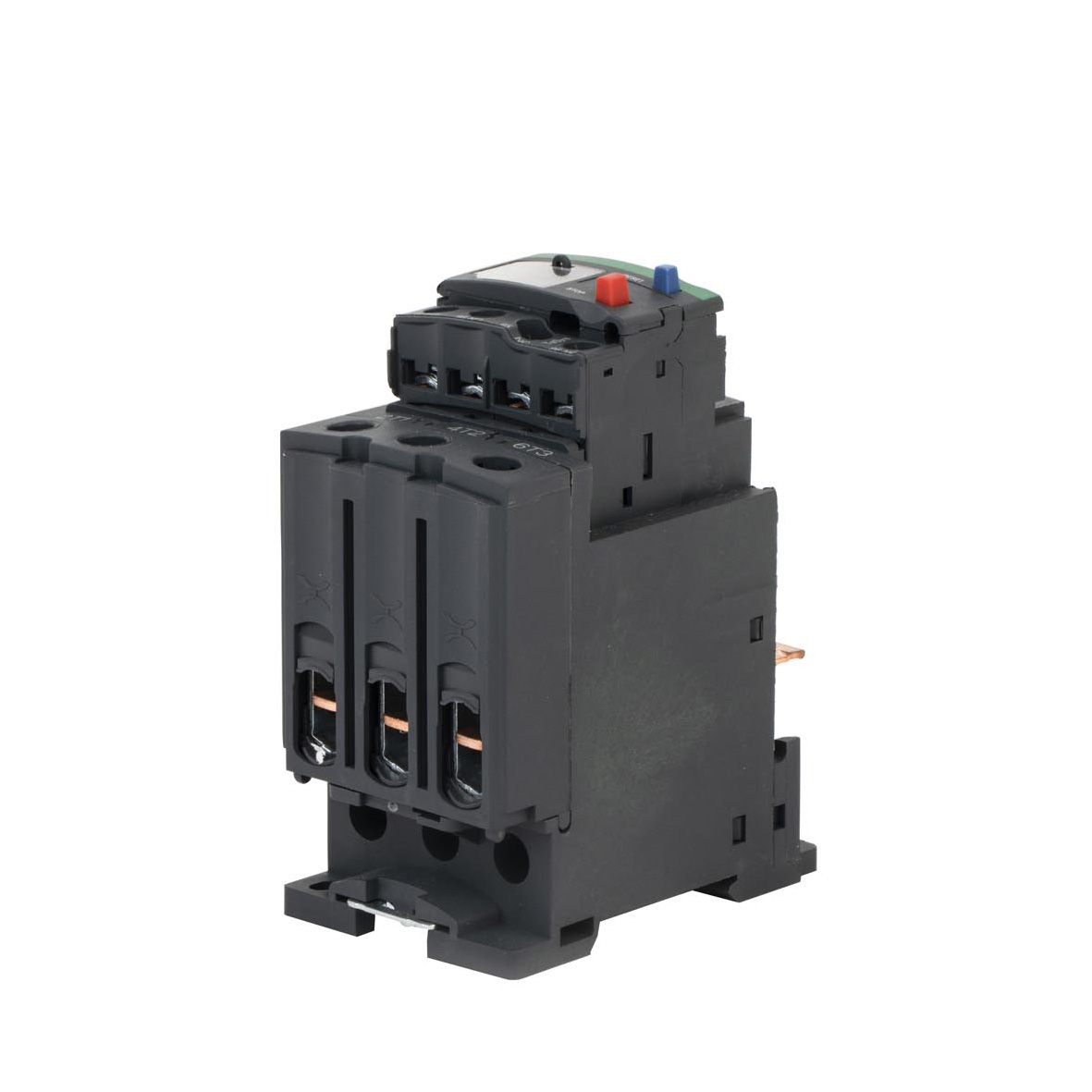

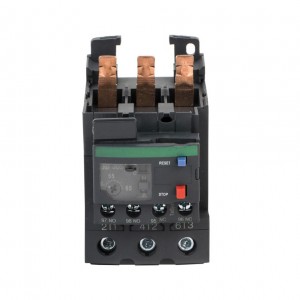

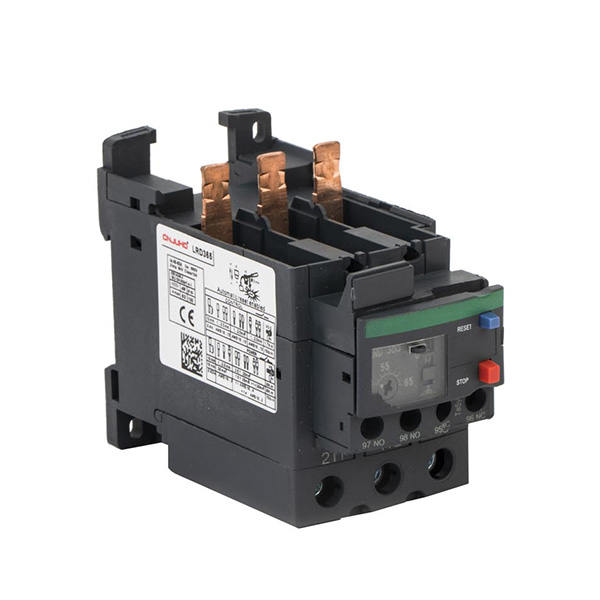

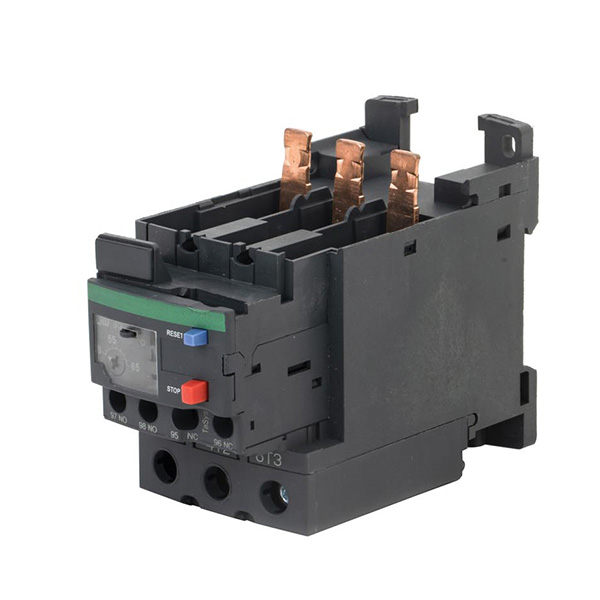

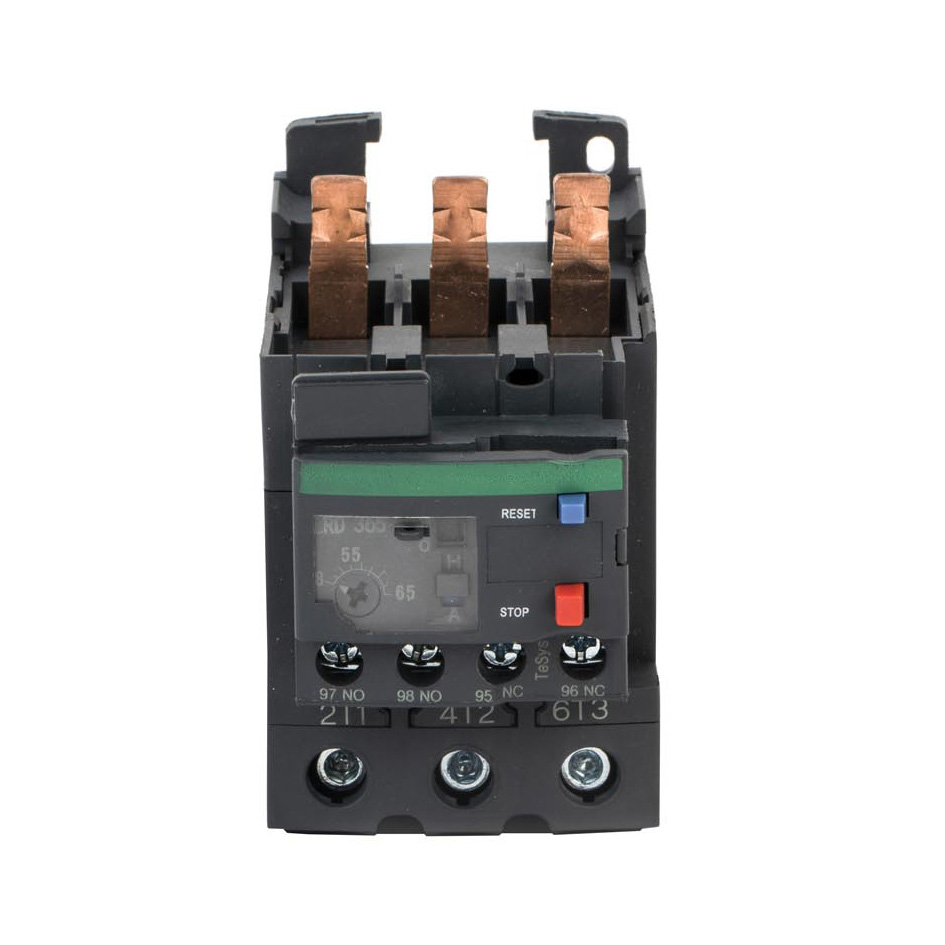

JLRD365 thermal relay suit to LC1D40A contactors

Short Description:

Overview Details for LRD365

Overload Relay (TeSys D): Class 10 with Single Phase Sens., Trip: 48A to 65A

Overload Relay (TeSys D):

Class 10 with Single Phase Sens

Trip: 48A to 65A

TeSys LRD365 overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 40 amp through 65 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 48 to 65 amperes. This trip current rating is calibrated per Class 10A. This overload relay uses EVERLINK termnals in place of the standard terminals.

Send email to us

Product Detail

Product Tags

Parameter data sheet

Product or Component Type	TeSys LRD;TeSys Deca
Product or Component Type	Differential thermal overload relay
Device short name	LRD365
relay application	Motor protection
Product Compatibility	LC1D65A;LC1D50A
network type	DC;AC
thermal overload class	Class 10A IEC 60947-4-1
thermal protection adjustment range	48…65 A
[Ui] rated insulation voltage	Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 690 V IEC 60947-4-1
Network Frequency	0…400 Hz
mounting support	Plate;with specific accessories;Rail;with specific accessories;Under contactor
tripping threshold	1.14 +/- 0.06 Ir IEC 60947-4-1
auxiliary contact composition	1 NO + 1 NC
[Ith] conventional free air thermal current	5 A signalling circuit
permissible current	0.95 A 380 V AC-15 signalling circuit;0.06 A 440 V DC-13 signalling circuit
[Ue] rated operational voltage	690 V AC 0…400 Hz power circuit IEC 60947-4-1
associated fuse rating	4 A gG signalling circuit;4 A BS signalling circuit
[Uimp] rated impulse	6 kV
phase failure sensitivity	Tripping current 130 % of Ir on two phase;the last one at 0
control type	Red push-button stop;Blue push-button reset
temperature compensation	-4…140 °F (-20…60 °C)
tightening torque	Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals;Power circuit 44.25 lbf.in (5 N.m) EverLink BTR screw connectors
IP degree of protection	IP20 conforming to IEC 60529
climatic withstand	IACS E10
ambient air temperature for operation	-4…140 °F (-20…60 °C) without derating IEC 60947-4-1
Ambient Air Temperature for Storage	-76…158 °F (-60…70 °C)
flame retardance	V1 conforming to UL 94
mechanical robustness	Shocks15 Gn for 11 ms IEC 60068-2-7;Vibrations4 gn IEC 60068-2-6
dielectric strength	1.89 kV 50 Hz IEC 60947-1
Standards	EN/IEC 60947-4-1;EN/IEC 60947-5-1;UL 60947-4-1;UL 60947-5-1;CSA C22.2 No 60947-4-1;CSA C22.2 No 60947-5-1;GB/T 14048.4;GB/T 14048.5;EN 50495
Category	22347-CONTACTOR;D-LINE;OVERLOADS-NEW
GTIN	3389119215510
Unit Type of Package 1	PCE
HeightWidthDepth	2.76 in (70 mm)2.17 in (55 mm)4.84 in (123 mm)
Net Weight	0.83 lb(US) (0.375 kg)
