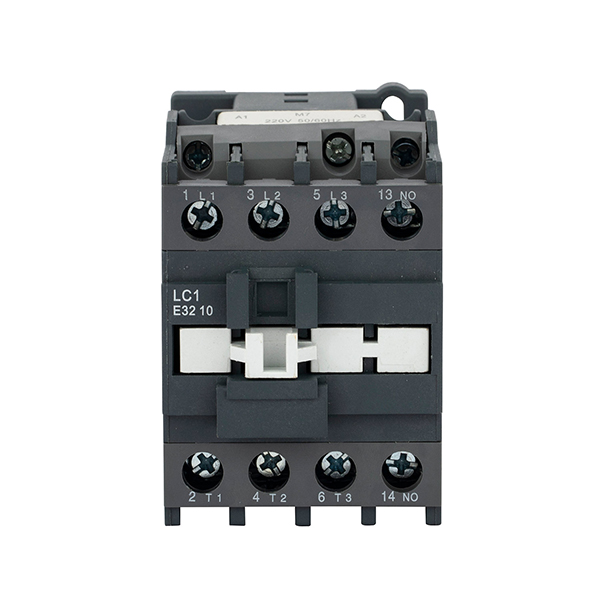

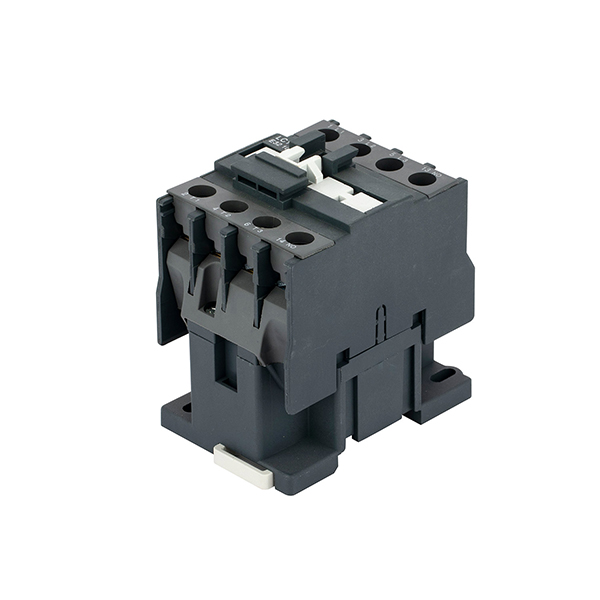

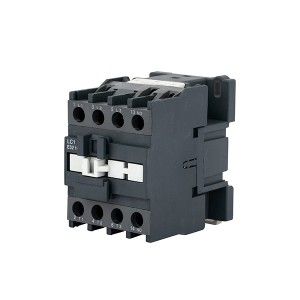

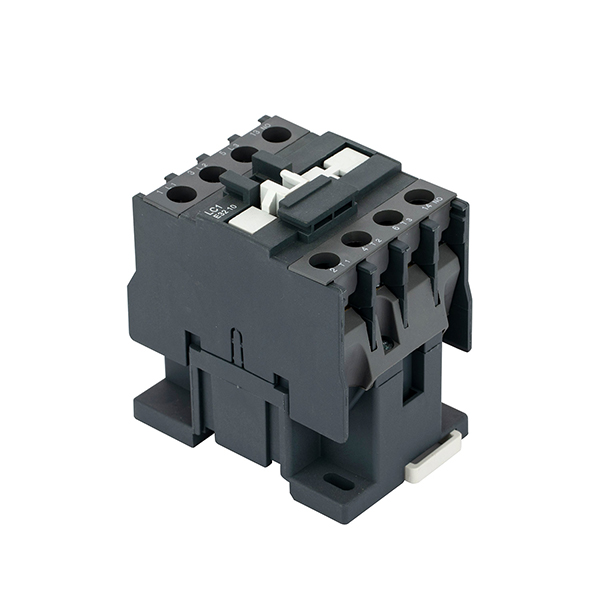

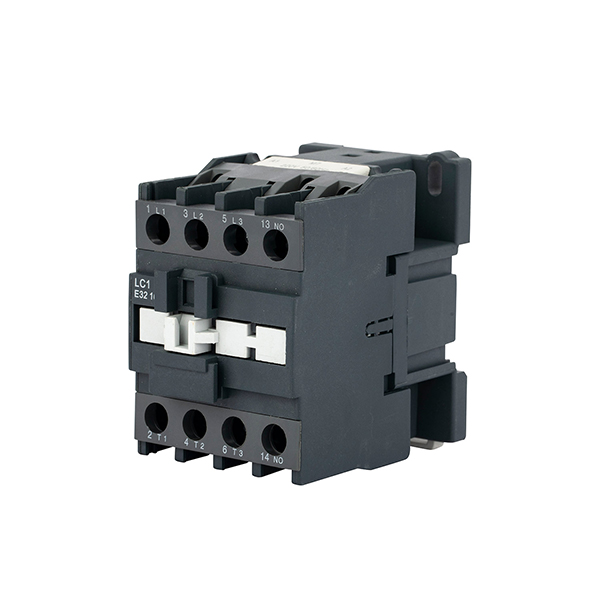

JLC1N0910-3210 AC contactors

JLC1N series 660V 9-95A AC Contactor is applicable at the line of AC 50/60 Hz, rated voltage up to 660V and rated current up to 32A for remote switch, breaking and frequent starting, controlling the AC motor. Moreover, the contactor can act as the time-delay contactor, reverse contactor star-delta starter by the accessories addition such as addition of modular auxiliary contact set. Air time delay head, mechanical interlock mechanism, etc. Moreover, it could act as the electromagnetic starter by the direct plug of the thermal relay.

This product conforms to the requirement of IEC60947-4-1

Product Details

product detail

Model	2 Cabling cross Section(cu)				Screw size	Tighteningtorque(N. m)
Model	Numbet of piece	Flexible cable with cold-prossed socKet(mm2)	Flexible cable without cold-pressed socket(mm2)	lnflekible cable(mm2)	Screw size	Tighteningtorque(N. m)
JLC1-N0910	1-2	2.5	4	4	M3.5	0.8
JLC1-N1210	1-2	2.5	4	4	M3.5	0.8
JLC1-N1810	1-2	4	6	6	M3.5	0.8
JLC1-N2510	1	4	10	6	M4	1.2
JLC1-N2510	2	4	6	6	M4	1.2
JLC1-N3210	1	4	10	6	M4	1.2
JLC1-N3210	2	4	6	6	M4	1.2
JLC1-N40	1	10	16	10	M4	3.5
JLC1-N40	2	10	10	10	M8	3.5
JLC1-N50	1	16	25	25	M8	3.5
JLC1-N50	2	16	16	-	M8	3.5
JLC1-N65	1	16	25	25	M8	3.5
JLC1-N65	2	16	16	-	M8	3.5
JLC1-N80	1	50	50	50	M8	3.5
JLC1-N80	2	25	35	-	M10	4.0
JLC1-N95	1	50	20	50	M10	4.0
JLC1-N95	2	25	35	-	M10	4.0
