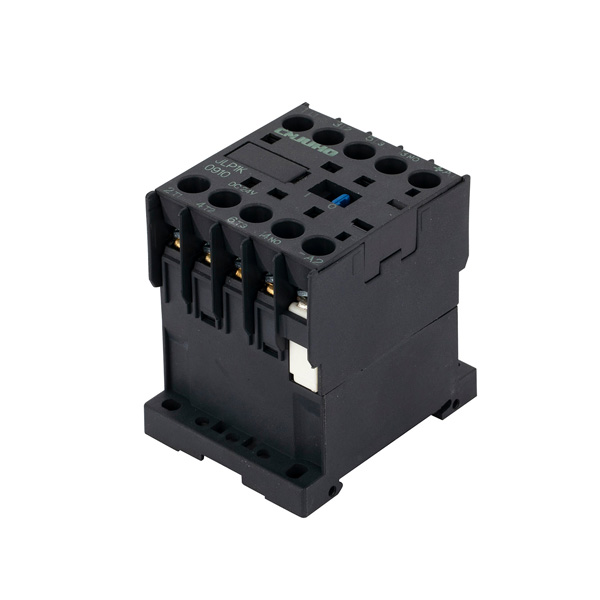

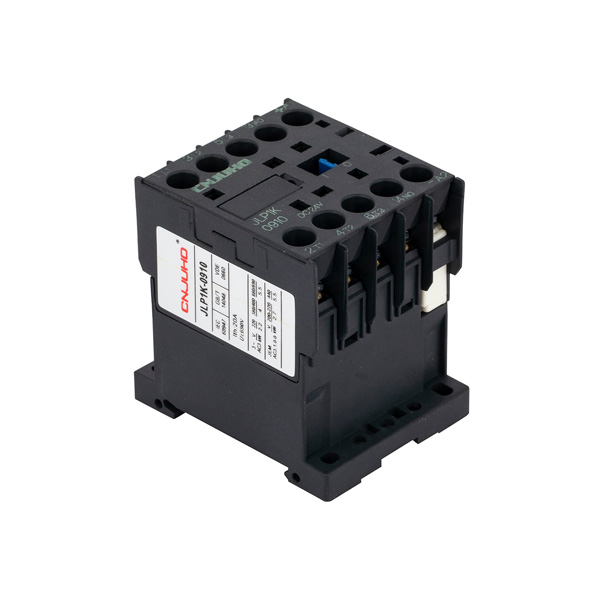

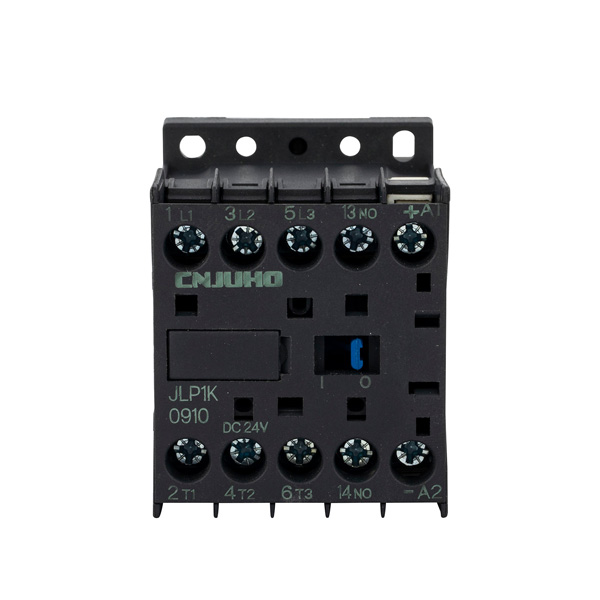

Mini DC Contactor 9A~12A, 24V, 48V

Short Description:

JLP1-K series of DC contactor is used in ac circuit of 50Hz/60Hz, rated voltage up to 690V, rated current up to 12A, to connect/disconnect or other frequent control of the main circuit and ac motors. They can be conveniently connected to auxiliary contacts and proper thermal relays to protect circuit from overloading. They feature traverse double breaking points, block and zero flash over design, with multi-function combination, small volume, and reliable performance. It can be widely applied to magnify/switch signal in micro-electronic interface.

Product Detail

More Description

Product Tags

Main Parameters

Type Rated operational
AC-3use group contact number(1)
Control power KW
220V 380/415V 440/500V 600V
JLP1-K06 6 1.5 2.2 3 3 3P+NC 3P+NO
JLP1-K09 9 2.2 4 4 4 3P+NC 3P+NO
JLP1-K09 12 3 5 5 5 3P+NC 3P+NO


Type/Parameters JLP1-K06 JLP1-K09 JLP1-K12
AC-3use group rated working current A 380V 6 9 12
660V 5 7.5 10
Conventional thermal current (1th) V 16 20 20
Rated working voltage(Ue) V 380 660
Rated insulation voltage(Ui) V 390

  • Previous:
  • Next:

  • Contactor production engineering:
    1.Excellent shell material
    2.Cooper part with 85% silver contact point
    3.Standard cooper coil
    4.High quality magnet
    Beautiful packing box


    Six advantages:
    1.Beautiful atmosphere
    2.Small size and high segment
    3.Double wire disconnect
    4.Excellent cooper wire
    5.Overload protection
    Green product and environment protection


    Application scenarios:
    Usually installed in the distribution box on the floor, computer center,telecommunication room,elevator control room,cable TV room,building control room, fire center, industrial automatic control area, hospital operation room,monitoring room and distribution box equipment with electronic medical device.


    Shipping way
    By sea, by air, by express carrier


    By T/T,(30% prepaid and the balance will be paid before shipment), L/C(letter of credit)
