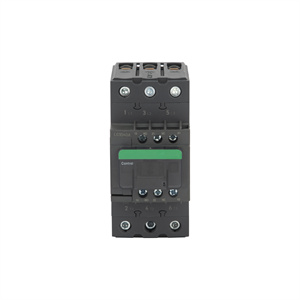

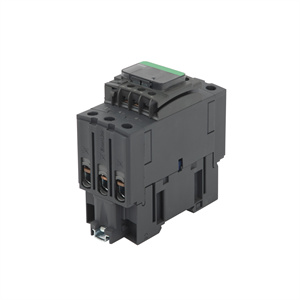

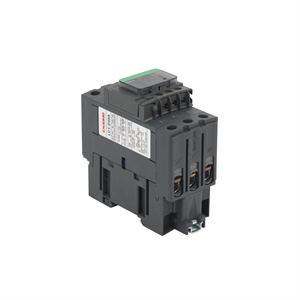

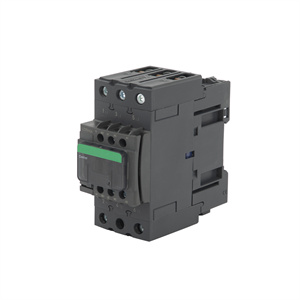

LC1D40A/50A/65A slim type contactor
New type design magnetic ac contactor, suit to rated ampere from 9A to 95A,50/60Hz, voltage can be 48V/AC, 24V/AC, 110V/AC, 220V/AC, 380V/AC, 415V/AC, 440V/AC.
Electric life: 1000000
Mechanical life: 100000
| Type | Rated insulation voltage(V) |
Conventional thermal current(A) |
Rated operation current(A) |
Control power(kw) | No .of contacts |
Remark | ||||
| 220V | 380V | 415V | 440V | 660V | ||||||
| JLC1D09 | 660 | 20 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 3P+NO 3P+NC |
Installation method 1.with two screws 2.35mm din rail |
| JLC1D12 | 20 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 3P+NO 3P+NC |
||
| JLC1D18 | 32 | 18 | 4 | 7.5 | 9 | 9 | 9 | 3P+NO 3P+NC |
||
| JLC1D25 | 40 | 25 | 5.5 | 11 | 11 | 11 | 15 | 3P+NO 3P+NC |
||
| JLC1D32 | 50 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 3P+NO 3P+NC |
||
| JLCD40 | 60 | 40 | 11 | 18.5 | 22 | 22 | 30 | 3P+NO+NC | Installation method 1.with three screws 2.75mm or 35mm din rail |
|
| JLC1D50 | 80 | 50 | 15 | 22 | 25 | 30 | 33 | |||
| JLC1D65 | 80 | 65 | 18.5 | 30 | 37 | 37 | 37 | |||
| JLC1D80 | 125 | 80 | 22 | 37 | 45 | 45 | 45 | |||
| JLC1D95 | 125 | 95 | 25 | 45 | 45 | 45 | 45 | |||
| Type | JLC1D09 | JLC1D12 | JLC1D18 | JLCD25 | JLC1D32 | JLC1D40 | JLC1D50 | JLC1D65 | JLCD80 | JLCD95 | ||
| Pick-up voltage 50/60Hz(V) |
(0.85~ 1.1)Us |
(0.85~ 1.1) Us |
(0.85~ 1.1)Us |
(0.85~ 1.1)Us |
(0.85~ 1.1)Us |
(0.85~ 1.1)Us |
(0.85~ 1.1)Us |
(0.85 ~1.1)Us |
(0.85~ 1.1)Us |
(0.85~ 1.1)Us |
||
| Release voltage 50/60Hz(v) |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
(0.2~ 0.75)Us |
||
| Coil power | 50Hz60Hz | Pick-up(VA) | 70 | 70 | 110 | 110 | 110 | 200 | 200 | 200 | 200 | 200 |
| Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 | ||
| Pick-up(VA) | 80 | 80 | 115 | 115 | 115 | 200 | 200 | 200 | 200 | 200 | ||
| Holding(VA) | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 | ||
| Power consumption (W) |
1.8~2.7 | 1.8~2.7 | 3~4 | 3~4 | 3~4 | 6~10 | 6~10 | 6~10 | 6~10 | 6~10 | ||
