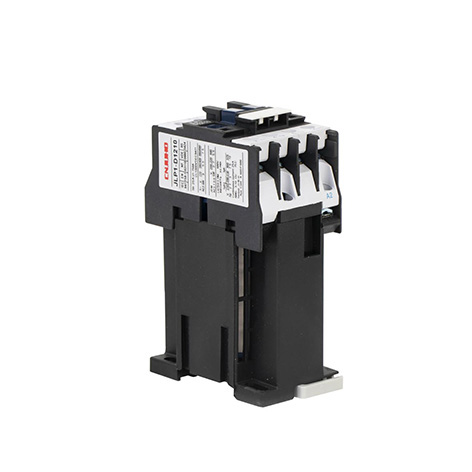

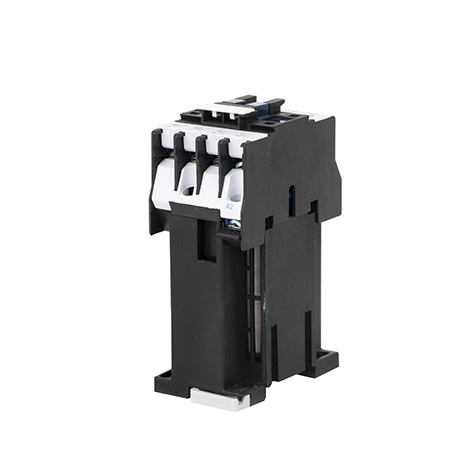

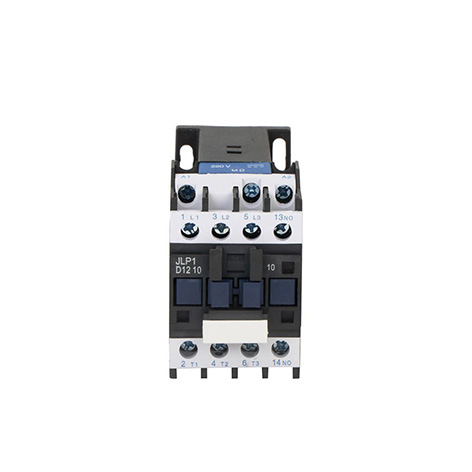

DC Contactor 24v, 36v, 48V

Short Description:

JLP1 series DC contactor is suitable for use in the circuits up to rated voltage 660V AC 50Hz or 60Hz, and in rated current 9-95A in AC-3/380V load circuits. For remote controlling circuit making, breaking and frequent starting AC motors. It can be also combine with the auxiliary contact group,time-delay block,air delayer, thermal overload relay devices etc.
This product conforms to GB14048.4, IEC60947-4-1 standard.


Product Detail

More Description

Product Tags

SPECIFICATION

TYPE

reted woring currentA IeA (AC-3)

Rated heat current Ith(A)

rated working voltage UeA

rated insulated voltage UiA

JLP1-D09

9

20

380v 660v

660v

JLP1-D12

12

20

JLP1-D18

18

32

JLP1-D25

25

40

JLP1-D32

32

50

JLP1-D40

40

60

JLP1-D50

50

80

JLP1-D65

65

80

JLP1-D80

80

125

JLP1-D95

95

125



TYPE

controlled power KW

Electrical life(AC-3)104 contactsnumber

220V

380V

415V

440V

660V

JLP1-D09

2.2

4

4

4

5.5

660V

JLP1-D12

3

5.5

5.5

5.5

5.5

JLP1-D18

4

7.5

9

9

9

JLP1-D25

5.5

11

11

11

11

3P+NO

JLP1-D32

7.5

15

15

15

18.5

3P+NC

JLP1-D40

11

18.5

22

22

30

JLP1-D50

15

22

25

30

33

3P+NO+NC

JLP1-D65

18.5

30

37

37

37

JLP1-D80

22

37

45

45

45

JLP1-D95

25

45

45

45

45


  • Previous:
  • Next:

  • Contactor production engineering:
    1.Excellent shell material
    2.Cooper part with 85% silver contact point
    3.Standard cooper coil
    4.High quality magnet
    Beautiful packing box

    more-description3

    Six advantages:
    1.Beautiful atmosphere
    2.Small size and high segment
    3.Double wire disconnect
    4.Excellent cooper wire
    5.Overload protection
    Green product and environment protection

    more-description1

    Application scenarios:
    Usually installed in the distribution box on the floor, computer center,telecommunication room,elevator control room,cable TV room,building control room, fire center, industrial automatic control area, hospital operation room,monitoring room and distribution box equipment with electronic medical device.

    more-description2

    Shipping way
    By sea, by air, by express carrier

    more-description4

    PAYMENT WAY
    By T/T,(30% prepaid and the balance will be paid before shipment), L/C(letter of credit)
