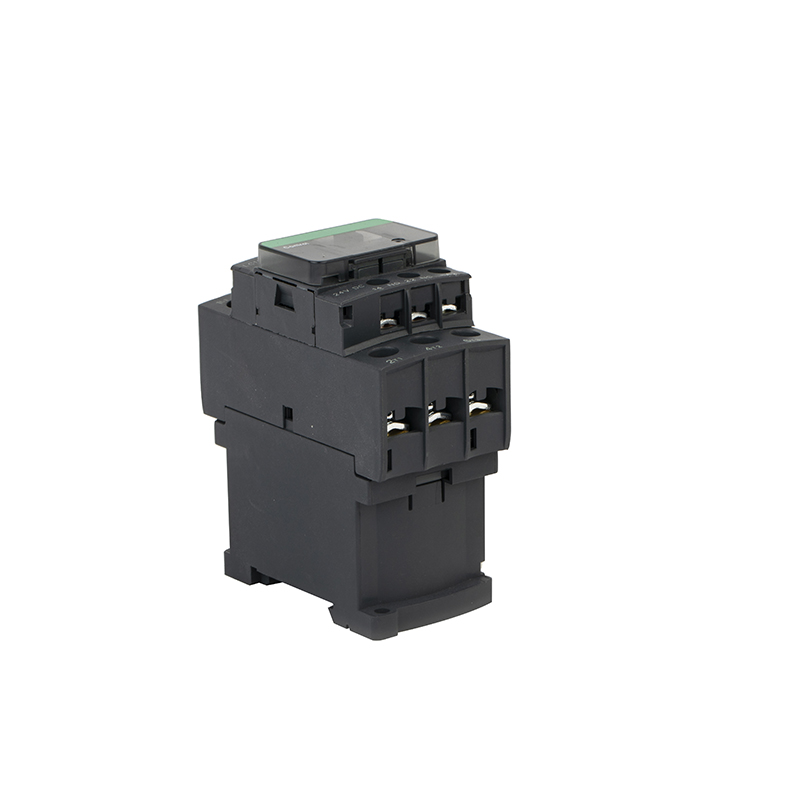

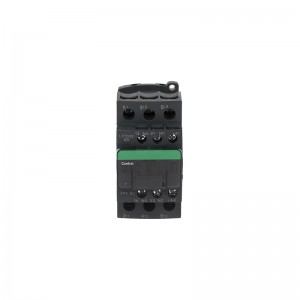

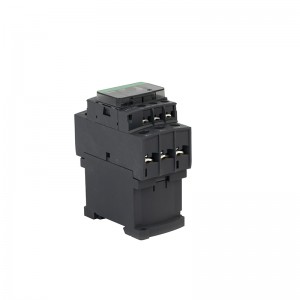

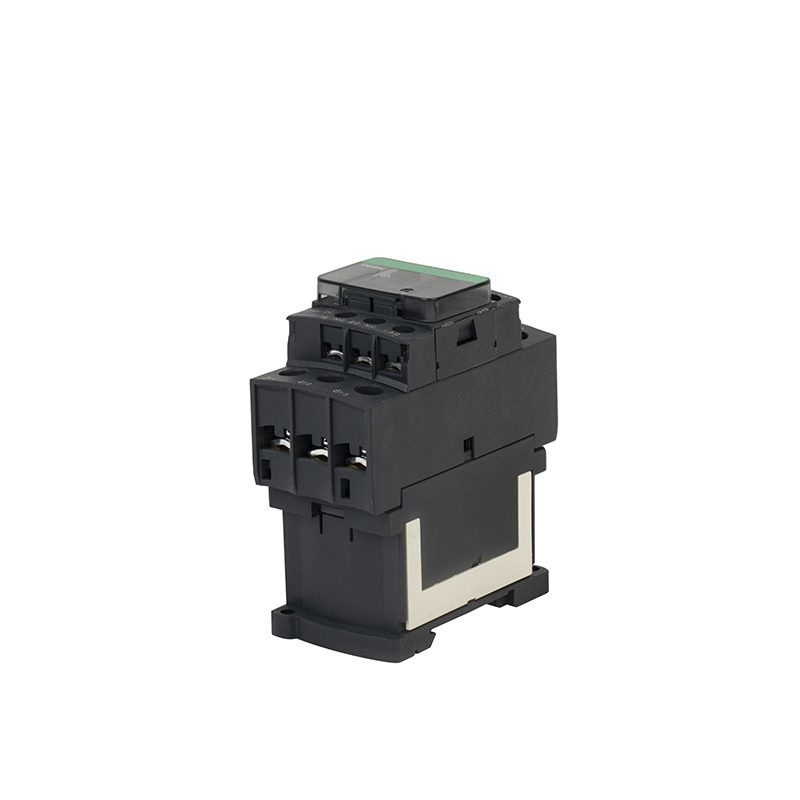

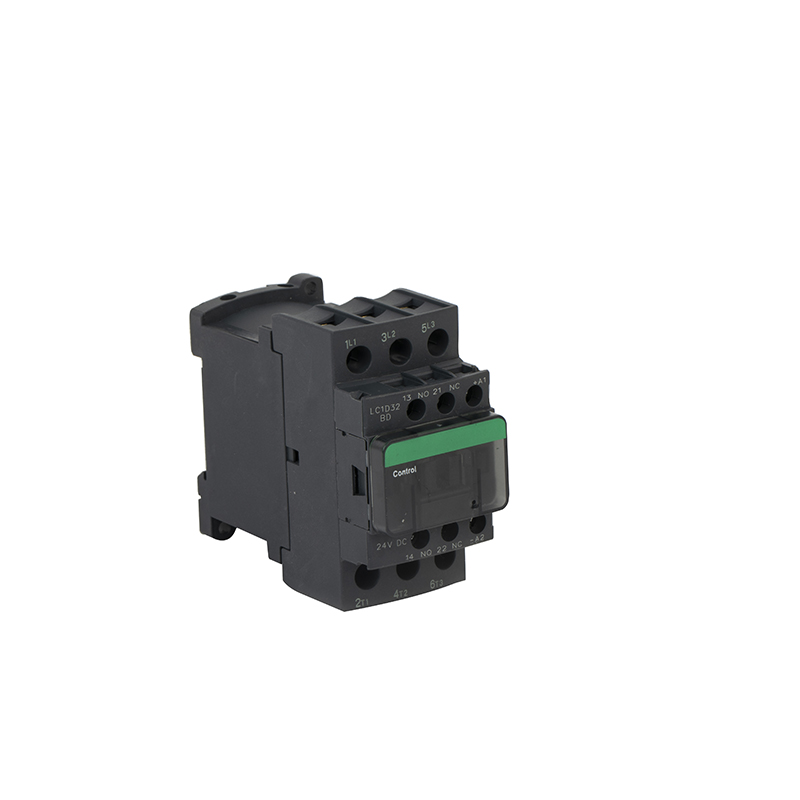

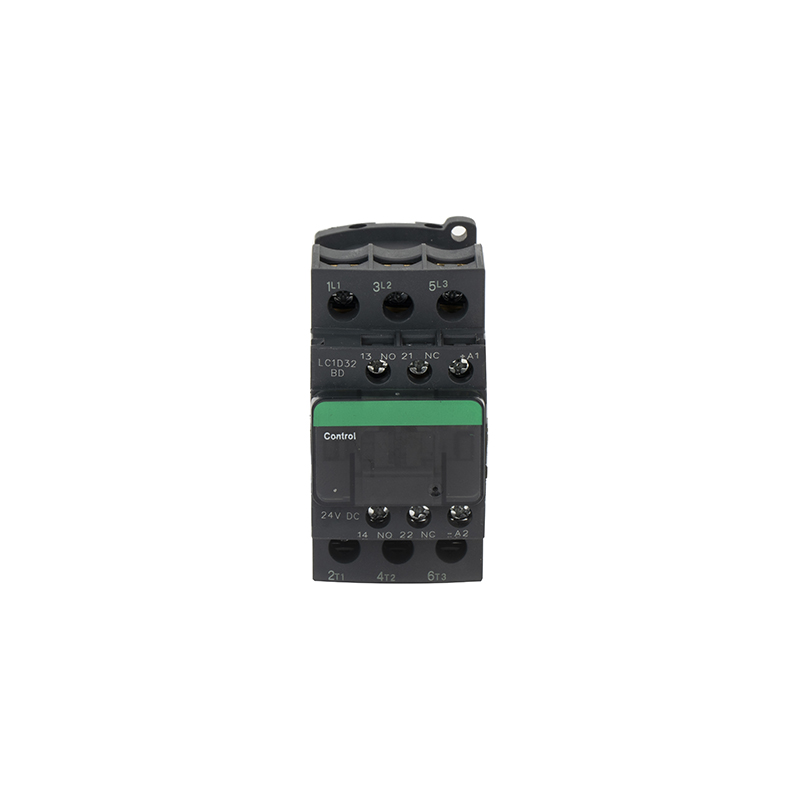

LC1D32BD Schneider new type dc contactors 32A
product detail
2.Parameter data sheet
|
Product or Component Type |
DC CONTACTOR, 3-POLES (3 NO), 32A, 24V DC COIL, NON-REVERSING
|
|
Device short name |
JLC1D32BD |
|
Contactor application |
Motor control;Resistive load |
|
Utilisation category |
AC-4;AC-1;AC-3;AC-3e |
|
Poles description |
3P |
|
[Ue] rated operational voltage |
Power circuit <= 690 V AC 25...400 Hz;Power circuit <= 300 V DC |
|
[Ie] rated operational current |
32 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;50 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;32 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit |
|
[Uc] control |
24 V DC |
|
Motor power kW |
7.5 kW 220...230 V AC 50/60 Hz AC-3);15 kW 380...400 V AC 50/60 Hz AC-3);15 kW 415...440 V AC 50/60 Hz AC-3);18.5 kW 500 V AC 50/60 Hz AC-3);18.5 kW 660...690 V AC 50/60 Hz AC-3);7.5 kW 400 V AC 50/60 Hz AC-4);7.5 kW 220...230 V AC 50/60 Hz AC-3e);15 kW 380...400 V AC 50/60 Hz AC-3e);15 kW 415...440 V AC 50/60 Hz AC-3e);18.5 kW 500 V AC 50/60 Hz AC-3e);18.5 kW 660...690 V AC 50/60 Hz AC-3e) |
|
Maximum Horse Power Rating |
2 hp 115 V at AC 50/60 Hz for 1 phase;5 hp 230/240 V at AC 50/60 Hz for 1 phase;7.5 hp 200/208 V at AC 50/60 Hz for 3 phase;10 hp 230/240 V at AC 50/60 Hz for 3 phase;20 hp 460/480 V at AC 50/60 Hz for 3 phase;30 hp 575/600 V at AC 50/60 Hz for 3 phase |
|
Compatibility code |
JLC1D32BD |
|
Pole of contact composition |
3 NO |
|
Contact compatibility |
M4 |
|
Protective cover |
With |
|
[Ith] conventional free air thermal current |
10 A 140 °F (60 °C) signalling circuit;32 A 140 °F (60 °C) power circuit |
|
Irms rated making capacity |
140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;300 A 440 V power circuit IEC 60947 |
|
rated breaking capacity |
550 A 440 V power circuit IEC 60947 |
|
[Icw] rated short-time withstand current |
260 A 104 °F (40 °C) - 10 s power circuit;430 A 104 °F (40 °C) - 1 s power circuit;60 A 104 °F (40 °C) - 10 min power circuit;138 A 104 °F (40 °C) - 1 min power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit |
|
associated fuse rating |
10 A gG signalling circuit IEC 60947-5-1;50 A gG <= 690 V type 1 power circuit;35 A gG <= 690 V type 2 power circuit |
|
average impedance |
2 mOhm - Ith 50 A 50 Hz power circuit |
|
power dissipation per pole |
2 W AC-3;5 W AC-1;2 W AC-3e |
|
[Ui] rated insulation voltage |
Power circuit 690 V IEC 60947-4-1;Power circuit 600 V CSA;Power circuit 600 V UL;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL |
|
overvoltage category |
III |
|
pollution degree |
3 |
|
[Uimp] rated impulse withstand voltage |
6 kV IEC 60947 |
|
safety reliability level |
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
|
mechanical durability |
30 Mcycles |
|
electrical durability |
1.65 Mcycles 32 A AC-3 <= 440 V;1.4 Mcycles 50 A AC-1 <= 440 V;1.65 Mcycles 32 A AC-3e <= 440 V |
|
control circuit type |
DC standard |
|
coil technology |
Built-in bidirectional peak limiting diode suppressor |
|
control circuit voltage limits |
0.1...0.25 Uc -40…158 °F (-40…70 °C) drop-out DC;0.7...1.25 Uc -40…140 °F (-40…60 °C) operational DC;1...1.25 Uc 140…158 °F (60…70 °C) operational DC |
|
inrush power in W |
5.4 W 68 °F (20 °C)) |
|
hold-in power consumption in W |
5.4 W 68 °F (20 °C) |
|
operating time |
53.55...72.45 ms closing;16...24 ms opening |
|
time constant |
28 ms |
|
maximum operating rate |
3600 cyc/h 140 °F (60 °C) |
|
tightening torque |
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals flat Ø 6 mm;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals Philips No 2;Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2;Power circuit 22.13 lbf.in (2.5 N.m) screw clamp terminals pozidriv No 2 |
|
auxiliary contact composition |
1 NO + 1 NC |
|
auxiliary contacts type |
Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1 |
|
signalling circuit frequency |
25...400 Hz |
|
minimum switching voltage |
17 V signalling circuit |
|
minimum switching current |
5 mA signalling circuit |
|
insulation resistance |
> 10 MOhm signalling circuit |
|
non-overlap time |
1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact |
|
Mounting Support |
Plate;Rail |
|
standards |
CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508;IEC 60335-1 |
|
Product Certifications |
LROS (Lloyds register of shipping);CSA;UL;GOST;DNV;CCC;GL;BV;RINA;UKCA |
|
IP degree of protection |
IP20 front face IEC 60529 |
|
protective treatment |
THIEC 60068-2-30 |
|
climatic withstand |
IACS E10 exposure to damp heat;IEC 60947-1 Annex Q category D exposure to damp heat |
|
permissible ambient air temperature around the device |
-40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating |
|
operating altitude |
0...9842.52 ft (0...3000 m) |
|
fire resistance |
1562 °F (850 °C) IEC 60695-2-1 |
|
flame retardance |
V1 conforming to UL 94
|
|
mechanical robustness |
Vibrations contactor open 2 Gn;5...300 Hz);Vibrations contactor closed 4 Gn;5...300 Hz);Shocks contactor open 10 Gn for 11 ms);Shocks contactor closed 15 Gn for 11 ms) |
|
Height*Width*Depth |
3.35 in (85 mm)X1.77 in (45 mm)X3.98 in (101 mm)) |
|
Net Weight |
1.18 lb(US) (0.535 kg) |
|
Category |
22355-CTR;TESYS D;OPEN;9-38A DC |
|
Discount Schedule |
I12 |
|
GTIN |
3389110357257 |
|
Returnability |
Yes |
|
Country of origin |
China |
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package |
50PCS/CTN |
|
Warranty |
18 months |
