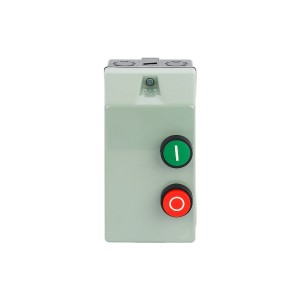

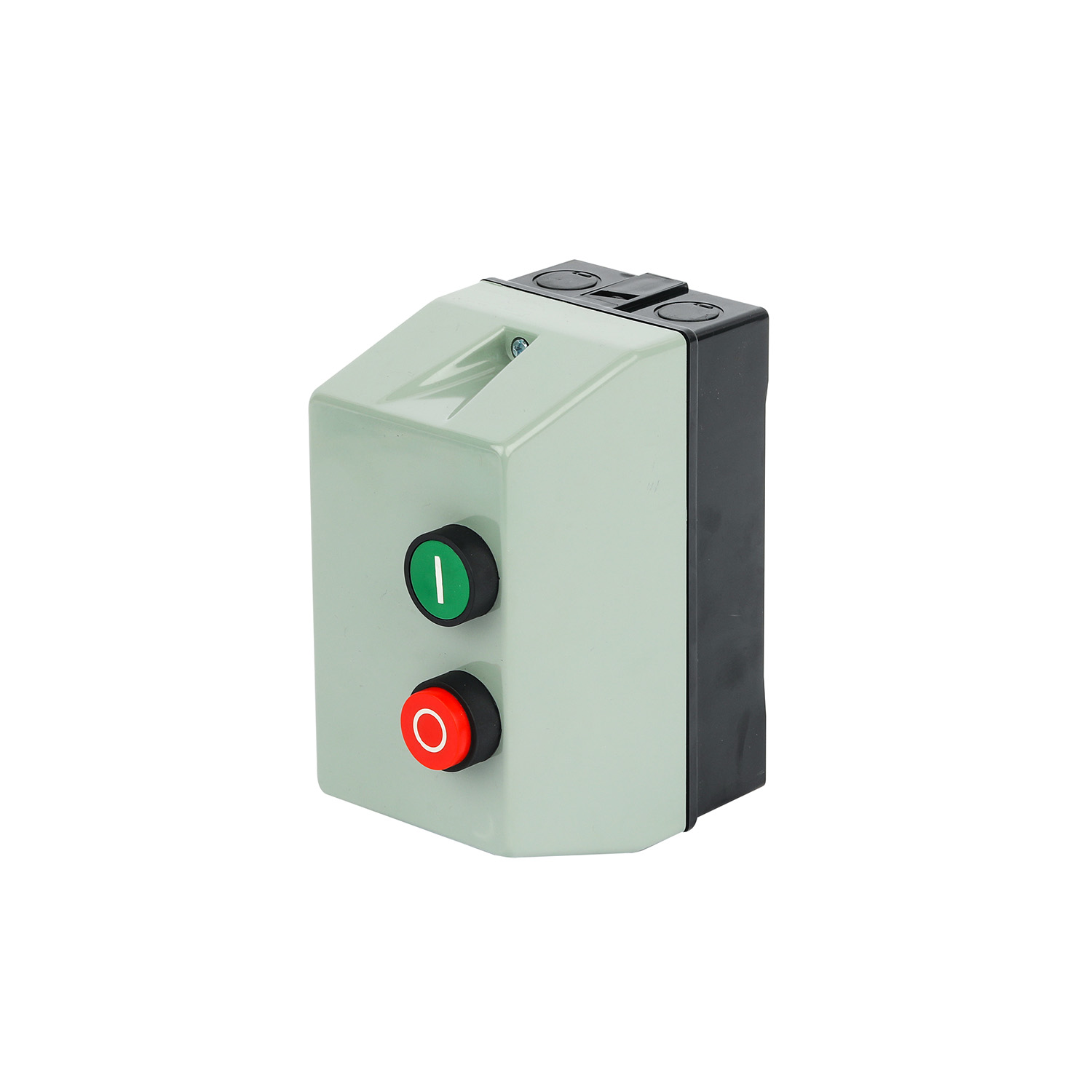

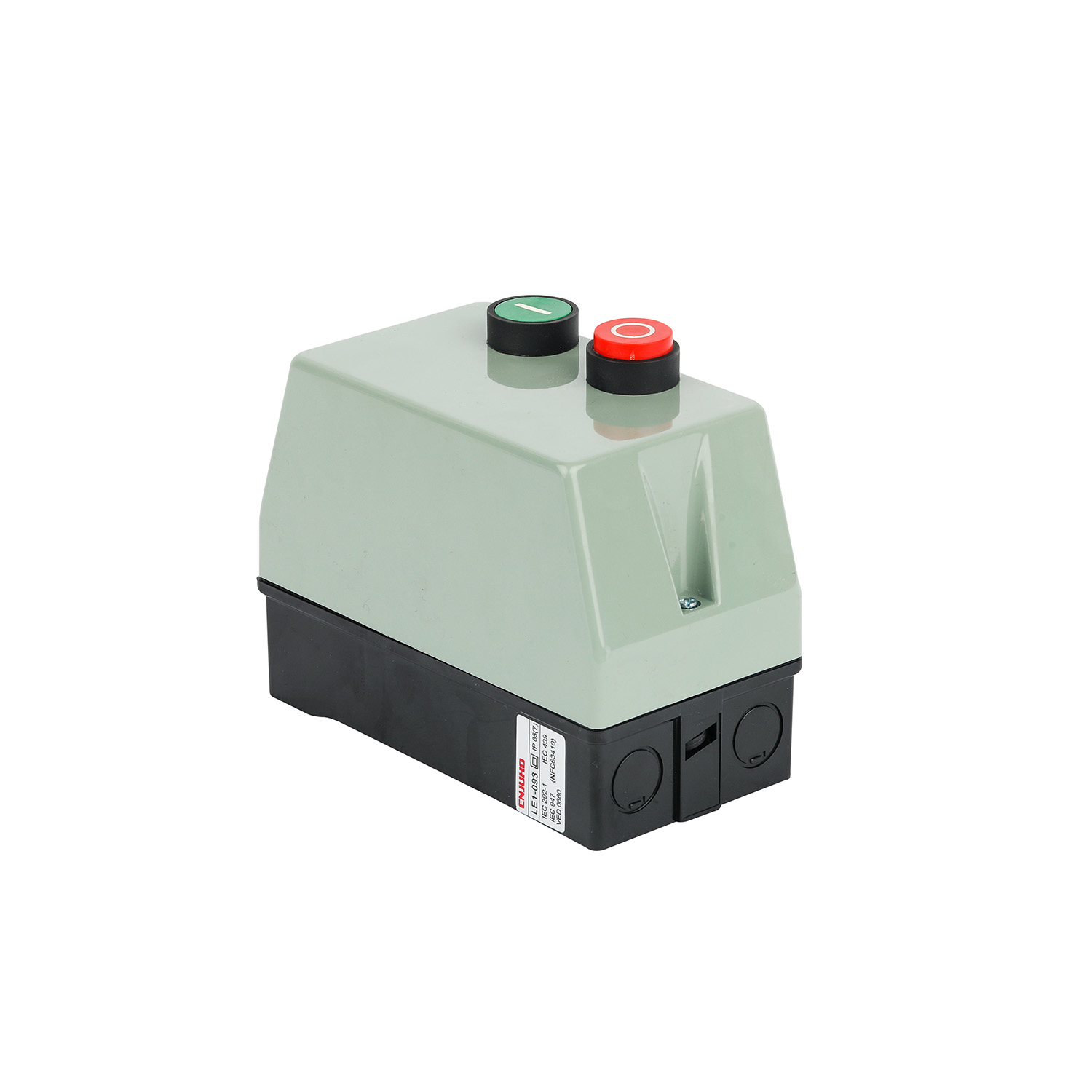

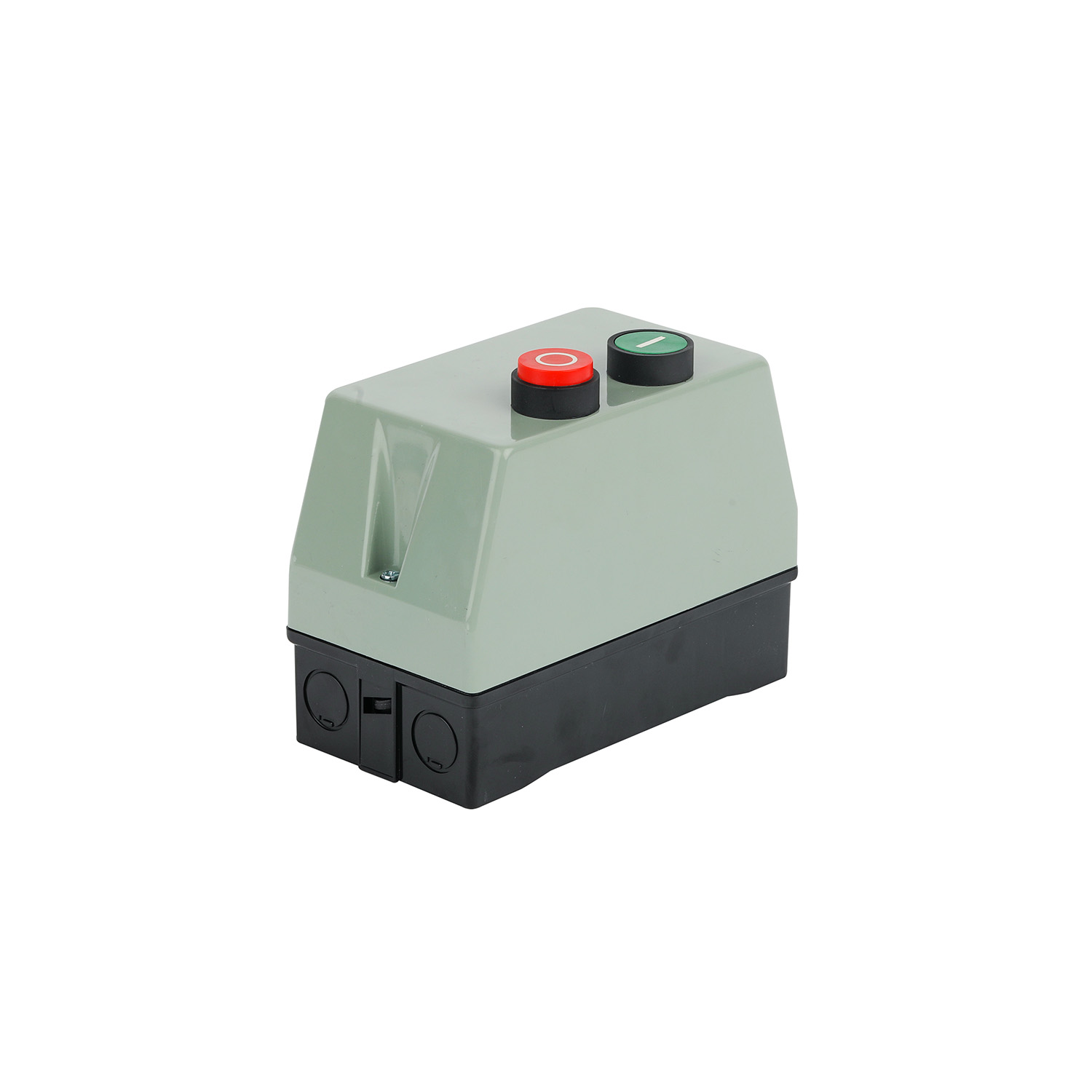

Magnetic Starter LE1 Series
Product Number
Structural Features
● The starter is of protective type, plastic shell type (JLE1-09~32) and metal shell type (JLE1-
40~95), and the protection level can reach IP65;
● The operating mechanism is a manual start and stop button, and the starter is an irreversible
starter with a thermal (overload) relay;
● The JLE1 AC contactor with 35mm standard rails selected in the starter can be directly buckled
on the base of the starter. The thermal (overload) relay three-phase lead hard wire can be
directly inserted into the three-phase main contact of the contactor, which is convenient for
assembly and wiring.
Main Parameters And Technical Performance
● The main technical performance indicators and component equipment of the starter (see Table 1);
● The starter rated control circuit voltage Us is: AC 50/60Hz, 24V, 42V, 110V, 220/230V, 240V,
380/400V, 415V, 440V, 480V, 6OOV;
● Range of action:
○ Pull-in voltage: 50 or 60H 80%Us-110% Us; 50/60Hz 85%Us~110%Us;
○ Release voltage: 20%Us-75%Us
● The operating range of the starter with thermal (overload) relay has the operating characteristics
of thermal relay;
5. The operating frequency with thermal relay is 30 times/hour;
Technical Parameters
|
Type |
Maximum power AC3 duty(KW) |
Rated current(A) |
Type of enclosure |
Suitable Thermal Relay(A) |
|||||
|
220V 230V |
380V 400V |
415V |
440V |
500V |
660V 690V |
||||
|
JLE1-D09 |
2.2 |
4 |
4 |
4 |
5.5 |
5.5 |
9 |
IP42 IP65 |
JLR2-D1312 JLR2-D1314 |
|
JLE1-D12 |
3 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
12 |
IP42 IP55 |
JLR2-D1316 |
|
JLE1-D18 |
4 |
7.5 |
9 |
9 |
10 |
10 |
18 |
IP42 IP55 |
JLR2-D1321 |
|
JLE1-D25 |
5.5 |
11 |
11 |
11 |
15 |
15 |
25 |
IP42 IP55 |
JLR2-D1322 JLR2-D2353 |
|
JLE1-D32 |
7.5 |
15 |
15 |
15 |
18.5 |
18.5 |
32 |
IP55 |
JLR2-D2355 |
|
JLE1-D40 |
11 |
18.5 |
22 |
22 |
22 |
30 |
40 |
IP55 |
JLR2-D3353 JLR2-D3355 |
|
JLE1-D50 |
15 |
22 |
25 |
30 |
30 |
33 |
50 |
IP55 |
JLR2-D3357 JLR2-D3359 |
|
JLE1-D65 |
18.5 |
30 |
37 |
37 |
37 |
37 |
65 |
IP55 |
JLR2-D3361 |
|
JLE1-D80 |
22 |
37 |
45 |
45 |
55 |
45 |
80 |
IP55 |
JLR2-D3363 JLR2-D3365 |
|
JLE1-D95 |
25 |
45 |
45 |
45 |
55 |
45 |
95 |
IP55 |
JLR2-D3365 |
|
Enclosure |
LE1-D09 and D12 |
Double insulated, protexted to IP 429(3) or to IP 659(4) |
|||||||
|
LE1-D18 and D25 |
Double insulated, protexted to IP 427(3) or to IP 557(4) |
||||||||
|
LE1-D32…D95 |
Metal, IP 55 to IP 559 |
||||||||
|
Control(2 pushbuttons mounted on enclosure cover) |
LE1-D09…D95 |
1 green Start button "I" 1red Stop/Reset button"O" |
|||||||
|
Connections |
LE1-D32…D95 |
Pre-wired power and control circuit connections |
|||||||
|
Standard control circuit voltages |
|||||||||
|
Volts |
24 |
42 |
48 |
110 |
220/230 |
230 |
240 |
380/400 |
440 |
|
50/60HZ |
B7 |
D7 |
E7 |
F7 |
M7 |
P7 |
U7 |
Q7 |
R |
Shape And Installation Dimensions(mm)
Six advantages:
1.Beautiful atmosphere
2.Small size and high segment
3.Double wire disconnect
4.Excellent cooper wire
5.Overload protection
Green product and environment protection
