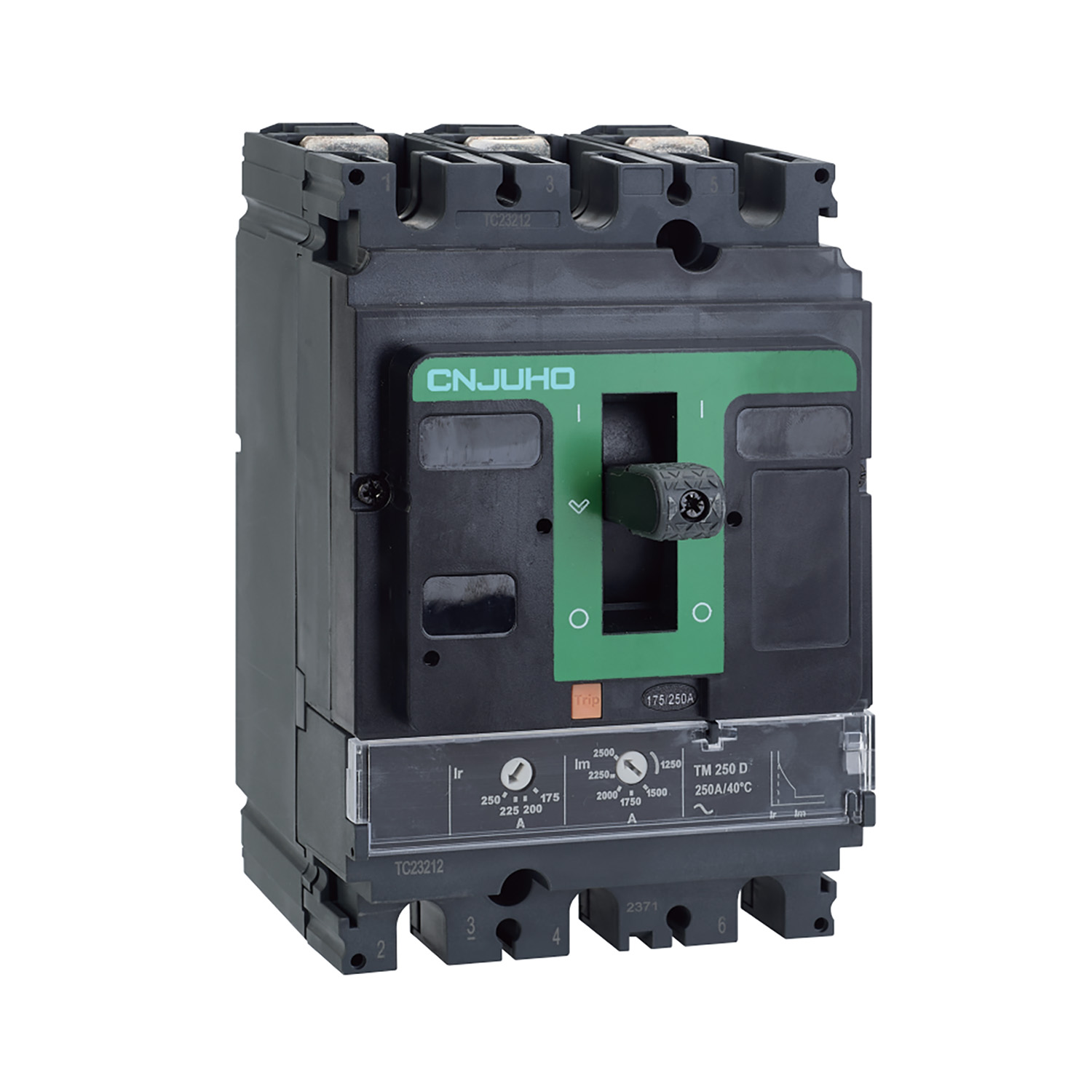

NSX100N MCCB 100-125A

Short Description:

JNSX Moulded Case Circuit Breaker

1.Application

UNS series plastic housing circuit breaker. They are characterized by compact size, modularization,high breaking, double break points, zero flashover, and green environmental protection. It issuitable for distribution networks with AC 50Hz, 60Hz, rated working voltage 690V and below, andrated current 12.5A to 1600A. It is used to distribute electric energy and protect lines and powerequipment from overload, short circuit, undervoltage, and other faults. It can also be used forinfrequent switching of lines and infrequent starting of motors under normal conditions.

The JNS series circuit breaker is also equipped with an intelligent controller, which not onlyincreases the selection range of setting current, but also has LCD display, overload setting current,short circuit delay current, short circuit instantaneous current, and tripping time that can beset, as well as short circuit instantaneous three-stage protection and undervoltage protection;

Equipped with RS485 communication interface and MODBUS-RTU protocol; DL645 protocol, userscan choose according to their needs. Remote signaling: breaking/closing, tripping, alarm, and faultstatus indication; Remote control: breaking, closing, resetting: Telemetry: three-phase current andN-phase current, grounding current, trip memory function, and functions such as querying triprecording parameters, further improving the reliability and continuity of power supply. This circuitbreaker also has an isolation function (can be used instead of a load switch).

This series of products comply with GB/T14048.2, GB/T 22710, and IEC 60947-2 standards, andhave passed 3C, CE, and TSE certifications.

Send email to us

Product Detail

Product Tags

JNSX-250 Type
Number of poles				3P□4P
Shell frame maximum		rated current Inm(A)					250
Rated current In(A)		TM MA Electronic type	100/160/180/200/225/250
Rated current In(A)		TM MA Electronic type					250
Rated insulation voltage Ui(V)							1000
Rated impulse withstand voltage Ulimp(kV)							8
50H-60Hz Rated voltage Ue(V) 50H-60Hz					A	400/4	415/500/690	690
Flying arc Distance(mim)
Short circuit breaking capability level			N		-		M	H		S
AC400/415V			35		50		85	100		150
Rated limit Short circuit AC500V Breaking capacitylcu(kA)			/		35		50	60		65
		AC690V	/			6		8		10
Usage Category							A
		AC400/415V	35	50			85	100		150
Rated running shortcircuit AC500V Breaking capacityics(kA)			/		35		50	60		65
AC690V			/			6		8		10
Rated short time resistant current ICW(kA)(1s)		Type of Stripper				3(micr	logic 5.0A
Additional Residual cu Remaining Current protection					rent protection module(See P12-13 EL6 remaining current module for specific parameters)
Electrical Life Test		AC415V					8000
Electrical Life Test		AC690V					1500
Number of mechanical life						2	0000

Type			JNSX-400			JNSX-630		JNSX-		250/1600
Number of poles			3P,4P			3P,4P			月	IP,4P
Shell frame maximum rated current Inm(A)			400			630			125	0/1600
TM MA Rated current In(A)			250/315//350/400			400/500//600				/
		Electronic type	400			630			630/800/1	000/1250/1600
Rated insulation voltage Ui(V)			1000			1000				:1000
Rated impulse withstand voltage Ump(kV)			8			8				8
50H-60Hz Rated voltage Ue(V)50H-60Hz			AC400/415/500/690V			AC400/415/500/690V			AC400/	415/500/690V
Flying arc Distance(mm)						0
Short circuit breaking capability level L M H S L M H S M H
Rated limit Short circuit	AC400/415V 50		85 100	150 50		85	100 150 50 65
Breaking capacityicu(xA)	AC500V 35		50 60	65 35		50	60 65		35 45
	AC690V		10 15	20		10	15 20		20 30
Rated running shortcircuit	AC400/415V 50		85 100	150	50	85	100 150		50 65
Breaking	AC500V 35		50 60	65	35	50	60 65		35 45
capacityics(kA)	AC690V		10 15	20		10	15 20		20 30
Working with categories		TM/MA micrologic 2 micrologic 3	A				A		/
		micrologic 5.0A	B			11			B
Rated short time resistant current ICW(kA)(1s) 5(micrologic 5.0A) 5(micrologic 5.0A) 20(micro logic 5.0A)
Remaining Current		protection Addit	onal Residual current	pro	ction speci	tule(Se ic para	P12-13 meters)	L6 remain	aining current	module for
Electrical Life Test		AC415V	6000				5000		1500
		AC690V	1000				1000		1000
