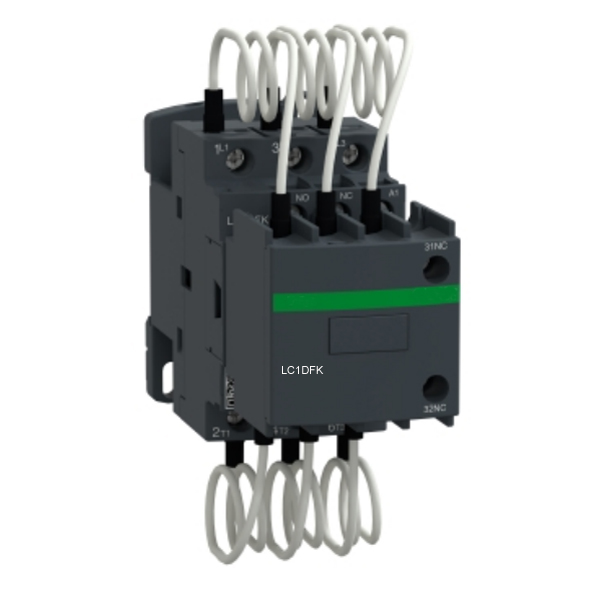

Capacitor duty contactor LC1DFK 12.5kVAR
Parameter data sheet
| Product or Component Type | TeSys LC1D.K
TeSys Deca
|
| Product or component type
|
Capacitor duty contactor |
| Device short name | LC1DFK
|
| Device application | Control |
| Contactor application | Power factor correction |
| Utilisation category | AC-6b |
| Poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: 690 V AC 50/60 Hz |
| Reactive power rating | 7 kvar at 230 V AC 50 Hz 60 °C
12.5 kvar at 400 V AC 50 Hz 60 °C 13 kvar at 440 V AC 50 Hz 60 °C 21 kvar at 690 V AC 50 Hz 60 °C |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Auxiliary contact composition | 1 NO + 2 NC instantaneous |
| Electrical durability | 300000 cycles at Ue 400 V
200000 cycles at Ue 690 V |
| Mounting support | DIN rail
Plate |
| Standards | EN/IEC 60947-1
EN/IEC 60947-4-1 IEC 60335-1 |
| Product certifications | IECEE CB Scheme
UKCA |
| Connections – terminals | Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1.5…6 mm² – cable stiffness: solid Power circuit: screw clamp terminals 2 1.5…4 mm² – cable stiffness: solid Power circuit: screw clamp terminals 1 1.5…6 mm² – cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² – cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² – cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1.5…4 mm² – cable stiffness: flexible with cable end
|
| Tightening torque | Control circuit: 1.7 N.m – on screw clamp terminals
Power circuit: 1.7 N.m – on screw clamp terminals |
| Maximum operating rate | 240 cyc/h |
| Auxiliary contacts type | type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1 |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Ambient air temperature for
operation |
-5…60 °C
|
| Ambient air temperature for
storage |
-60…80 °C
|
| Operating altitude | 0…3000 m |
| Height*Width*Depth | 115 mm*45 mm*121 mm |
| Net Weight | 0.53 kg |
