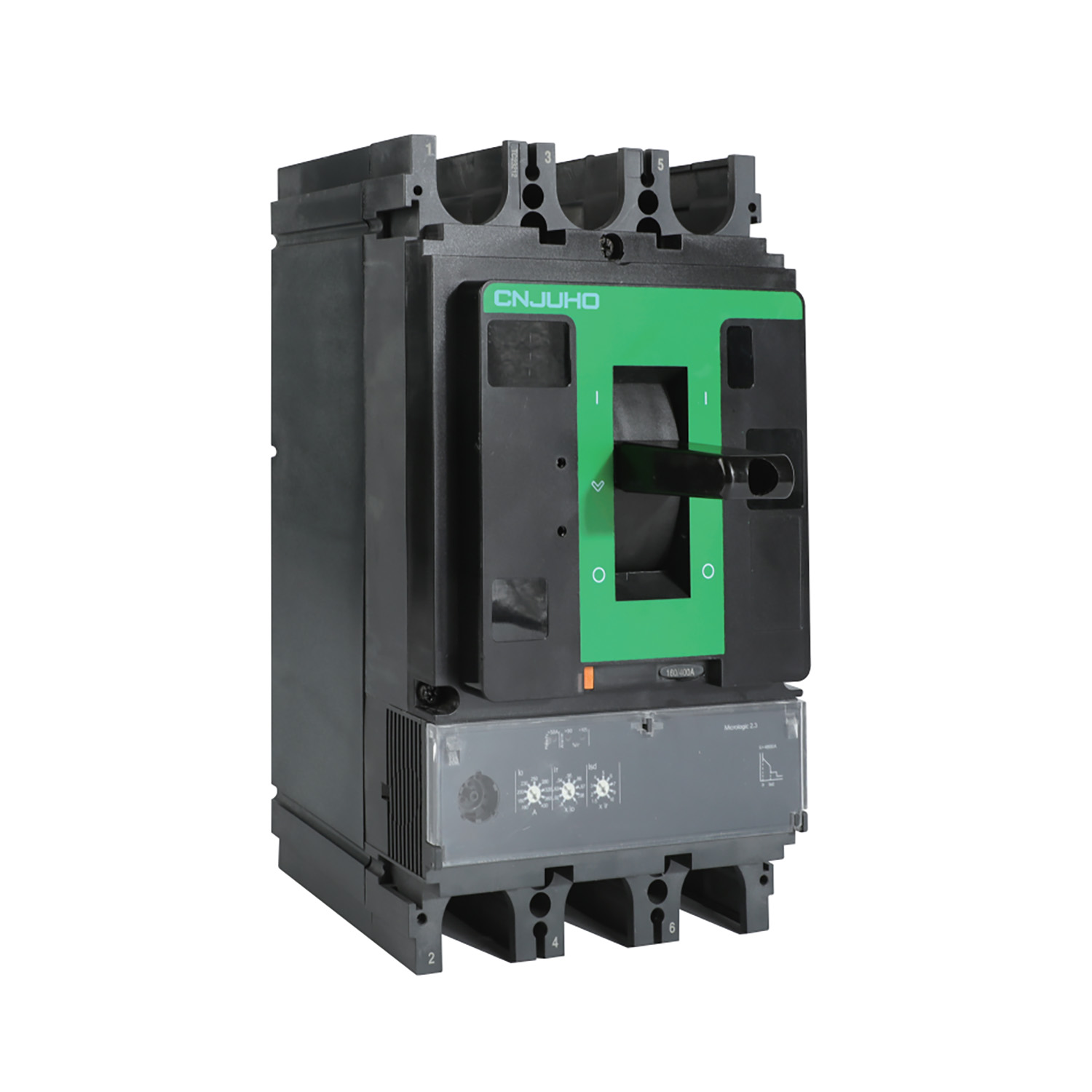

NSX400N MCCB/3P

Short Description:

Normal work and installation conditions

1. The altitude of the installation site does not exceed 2000m;

2. The JNS thermomagmetic type with temperature of the surrounding medium is -5C~+40C, and the average temperature of 24h is not more than +35C. The relative humidity of the air at the installation site does not exceed 50% at a maximum temperatureof +40°C ; at lower temperatures, there may be a higher relative humidity; the average minimum temperature of the wettest monthdoes not exceed +25C for the average of the month The maximum relative humidity is not more than 90%, and the condensationon the surface of the product due to temperature changes is considered.

3. JNS intellgent type with temperature of the surrounding medium is -40C~+80C

4. The product is used in non-explosive hazardous media, and the media does not have enough to corrode metals and destroyinsulating gases and conductive dust.

5. In places where there is rain protection and no water vapor.

6. The installation category is Class Ill.

7. The pollution level is level 3.

8. The basic installation of the circuit breaker is vertical (ie vertical) or horizontal (ie horizontal).

9. The incoming line is either the up line or the down line.

10. Circuit breakers can be divided into fixed and plug-in types.

Send email to us

Product Detail

Product Tags

JNSX-250N Type
Number of poles				3P□4P
Shell frame maximum		rated current Inm(A)					250
Rated current In(A)		TM MA Electronic type	100/160/180/200/225/250
Rated current In(A)		TM MA Electronic type					250
Rated insulation voltage Ui(V)							1000
Rated impulse withstand voltage Ulimp(kV)							8
50H-60Hz Rated voltage Ue(V) 50H-60Hz					A	400/4	415/500/690	690
Flying arc Distance(mim)
Short circuit breaking capability level			N		-		M	H		S
AC400/415V			35		50		85	100		150
Rated limit Short circuit AC500V Breaking capacitylcu(kA)			/		35		50	60		65
		AC690V	/			6		8		10
Usage Category							A
		AC400/415V	35	50			85	100		150
Rated running shortcircuit AC500V Breaking capacityics(kA)			/		35		50	60		65
AC690V			/			6		8		10
Rated short time resistant current ICW(kA)(1s)		Type of Stripper				3(micr	logic 5.0A
Additional Residual cu Remaining Current protection					rent protection module(See P12-13 EL6 remaining current module for specific parameters)
Electrical Life Test		AC415V					8000
Electrical Life Test		AC690V					1500
Number of mechanical life						2	0000

Type			JNSX-400			JNSX-630		JNSX-		250/1600
Number of poles			3P,4P			3P,4P			月	IP,4P
Shell frame maximum rated current Inm(A)			400			630			125	0/1600
TM MA Rated current In(A)			250/315//350/400			400/500//600				/
		Electronic type	400			630			630/800/1	000/1250/1600
Rated insulation voltage Ui(V)			1000			1000				:1000
Rated impulse withstand voltage Ump(kV)			8			8				8
50H-60Hz Rated voltage Ue(V)50H-60Hz			AC400/415/500/690V			AC400/415/500/690V			AC400/	415/500/690V
Flying arc Distance(mm)						0
Short circuit breaking capability level L M H S L M H S M H
Rated limit Short circuit	AC400/415V 50		85 100	150 50		85	100 150 50 65
Breaking capacityicu(xA)	AC500V 35		50 60	65 35		50	60 65		35 45
	AC690V		10 15	20		10	15 20		20 30
Rated running shortcircuit	AC400/415V 50		85 100	150	50	85	100 150		50 65
Breaking	AC500V 35		50 60	65	35	50	60 65		35 45
capacityics(kA)	AC690V		10 15	20		10	15 20		20 30
Working with categories		TM/MA micrologic 2 micrologic 3	A				A		/
		micrologic 5.0A	B			11			B
Rated short time resistant current ICW(kA)(1s) 5(micrologic 5.0A) 5(micrologic 5.0A) 20(micro logic 5.0A)
Remaining Current		protection Addit	onal Residual current	pro	ction speci	tule(Se ic para	P12-13 meters)	L6 remain	aining current	module for
Electrical Life Test		AC415V	6000				5000		1500
		AC690V	1000				1000		1000
