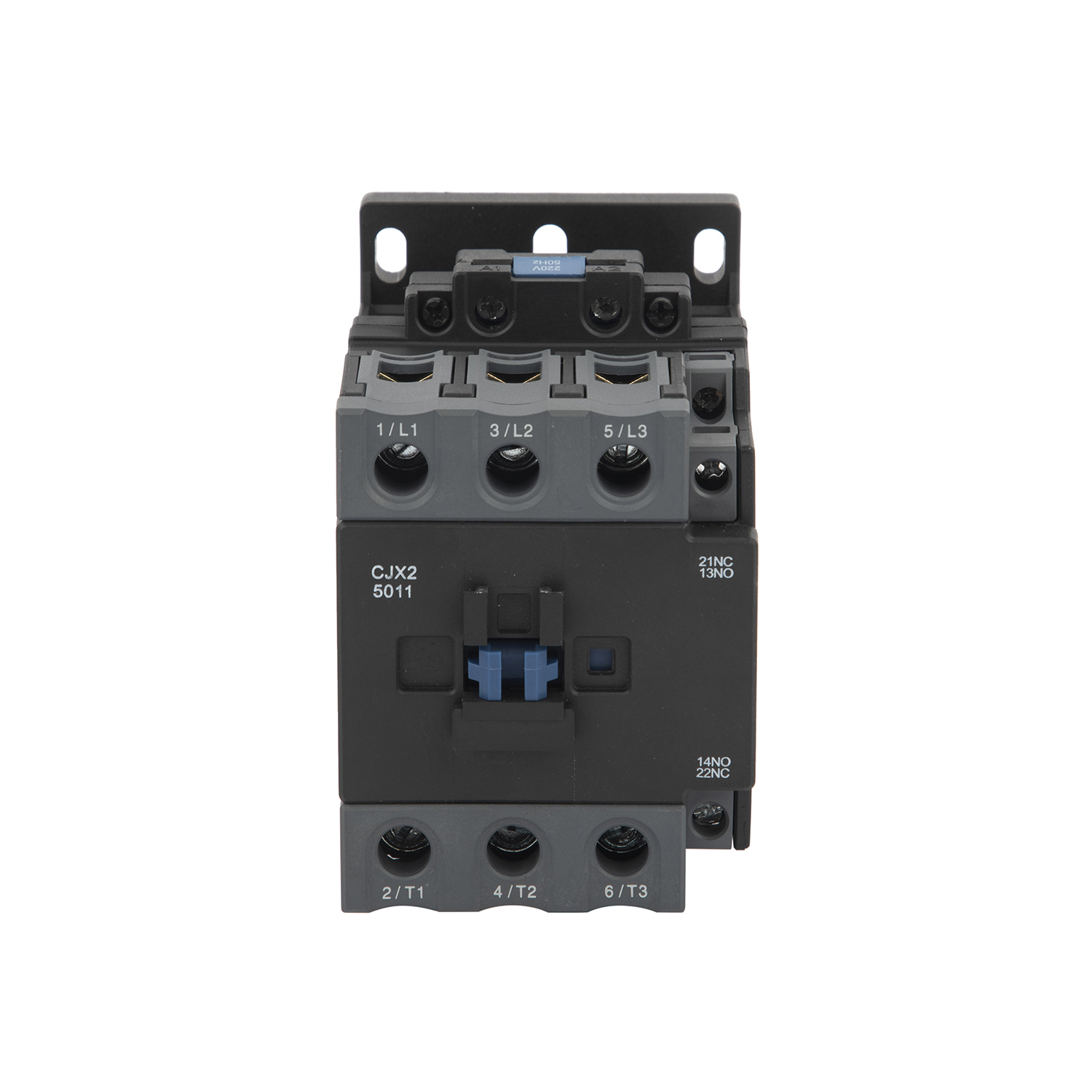

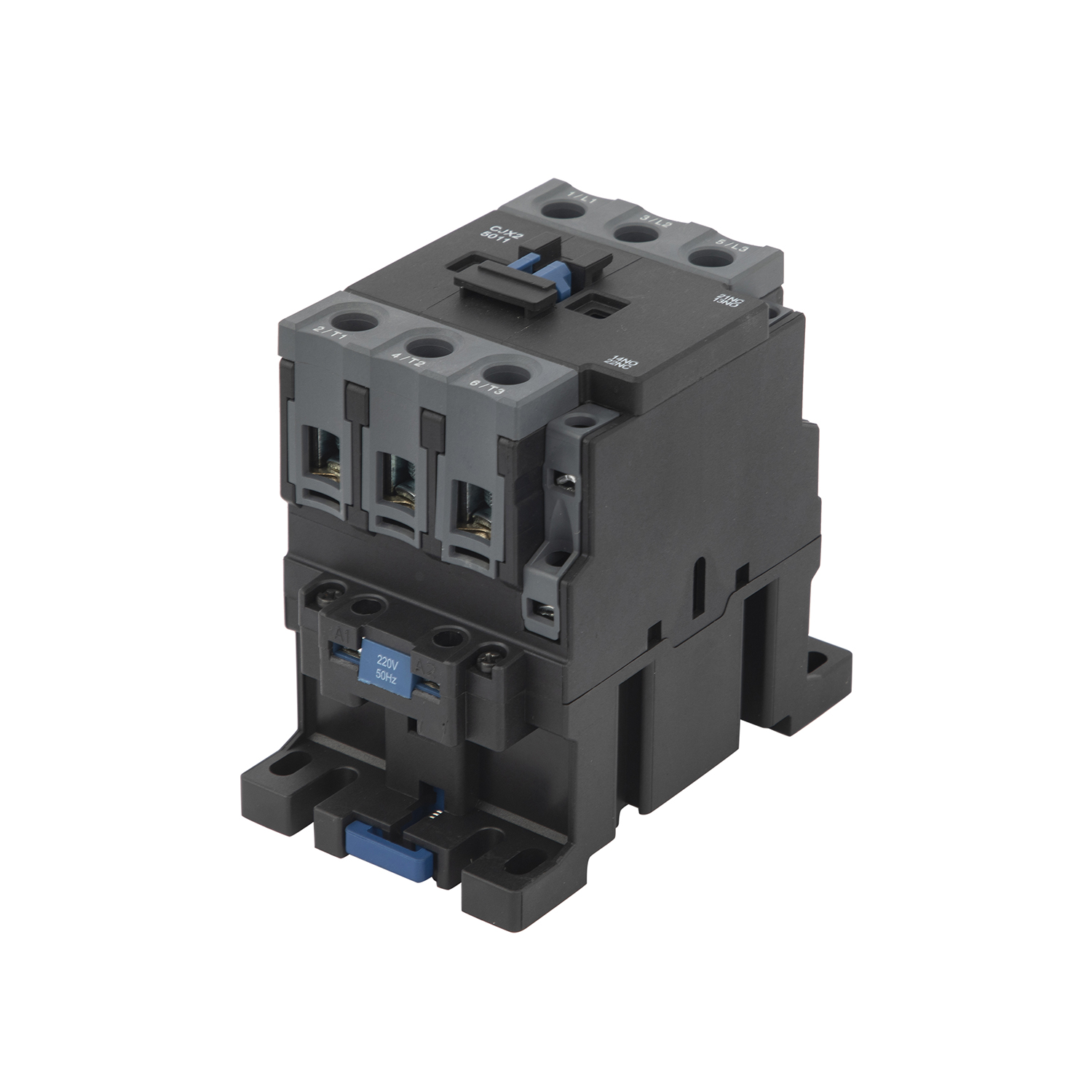

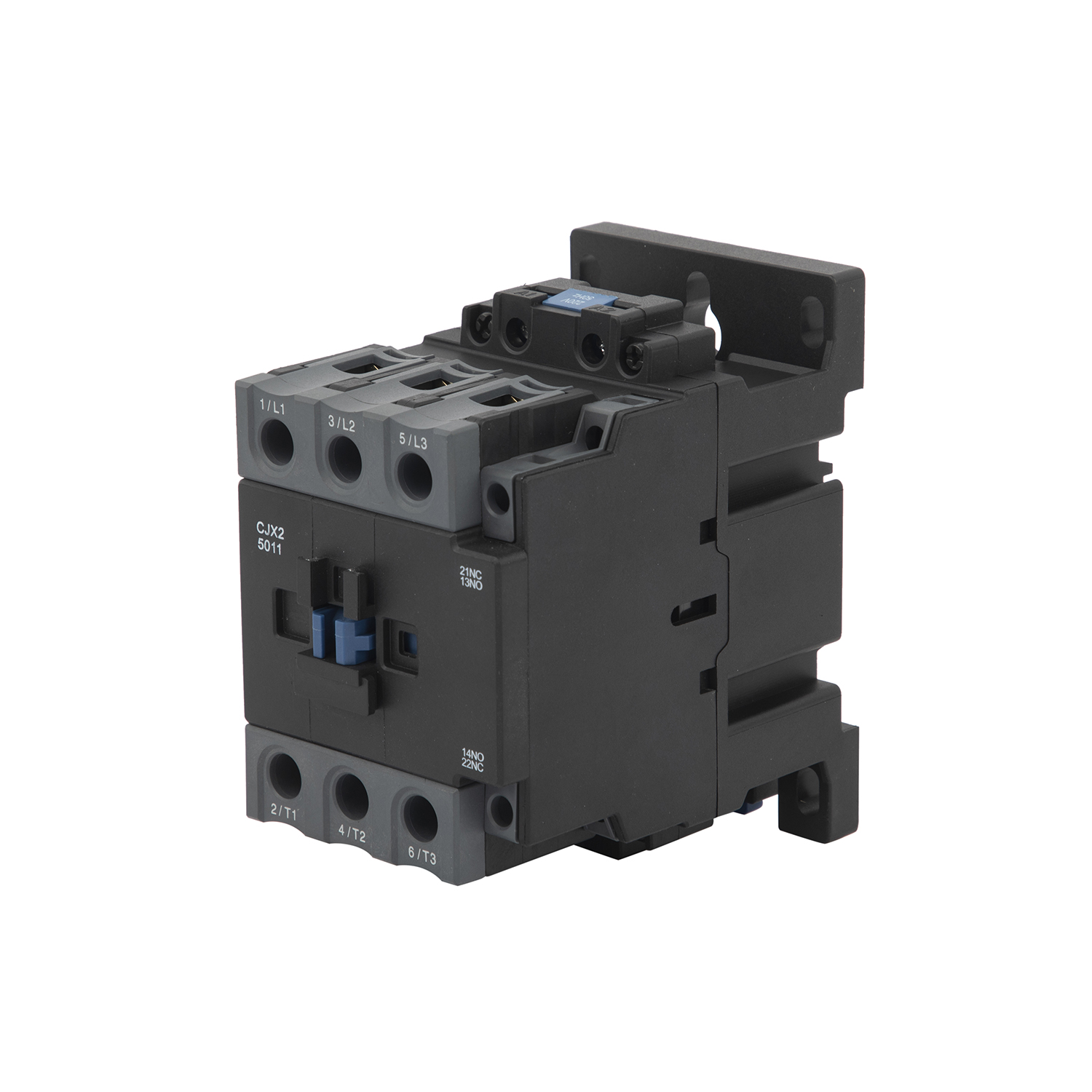

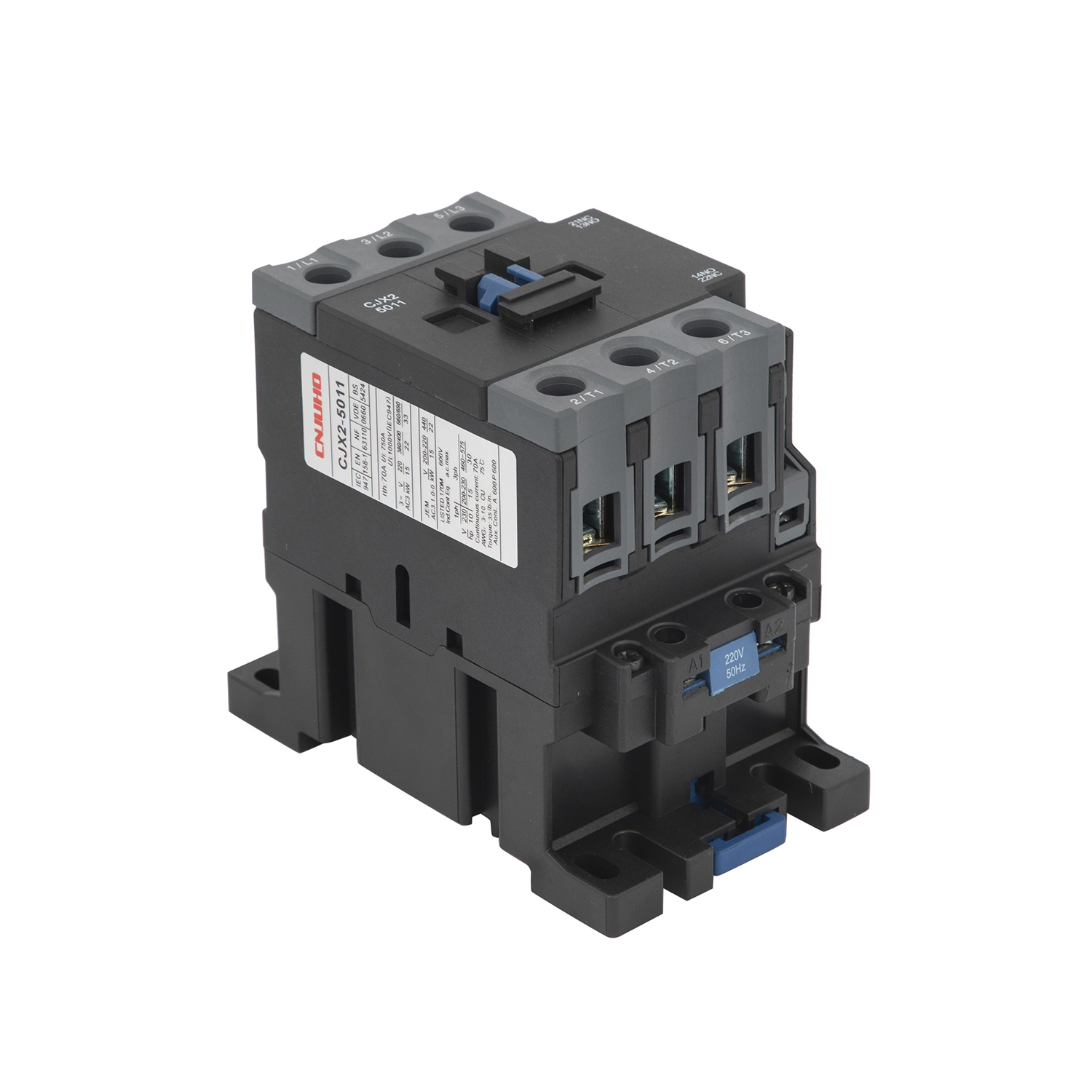

JXC40/50/65 Magnetic ac contactors 220V

● Rated operation current Ie: 6A~100A

● Rated operation voltage Ue: 220V~690V

● Rated insulation voltage: 690V (JXC-06M~100), 1000V (JXC-120~630)

● Number of poles: 3P and 4P (only for JXC-06M~12M)

● Coil control method: AC (JXC-06(M)~225), DC (JXC-06M~12M),AC/DC (JXC-265~630)

● Installation method: JXC-06M~100 rail and screw installation,JXC-120~630 screw installation

    product detail

    Type Rated
    insulation
    voltage(V)
    Conventional
    thermal
    current(A)
    Rated
    operation
    current(A)
    Control power(kw) No .of
    contacts
    220V 380V 415V 440V 660V
    JXC-0911 660 20 9 2.2 4 4 4 5.5 3P+1N.O+1N.C
    JXC-1211 20 12 3 5.5 5.5 5.5 7.5 3P+1N.O+1N.C
    JXC-1811 32 18 4 7.5 9 9 9 3P+1N.O+1N.C
    JXC-2511 40 25 5.5 11 11 11 15 3P+1N.O+1N.C
    JXC-3211 50 32 7.5 15 15 15 18.5 3P+1N.O+1N.C
    JXC-4011 60 40 11 18.5 22 22 30 3P+1N.O+1N.C
    JXC-5011 80 50 15 22 25 30 33
    JXC-6511 80 65 18.5 30 37 37 37
    JXC-8011 125 80 22 37 45 45 45
    JXC-9511 125 95 25 45 45 45 45
