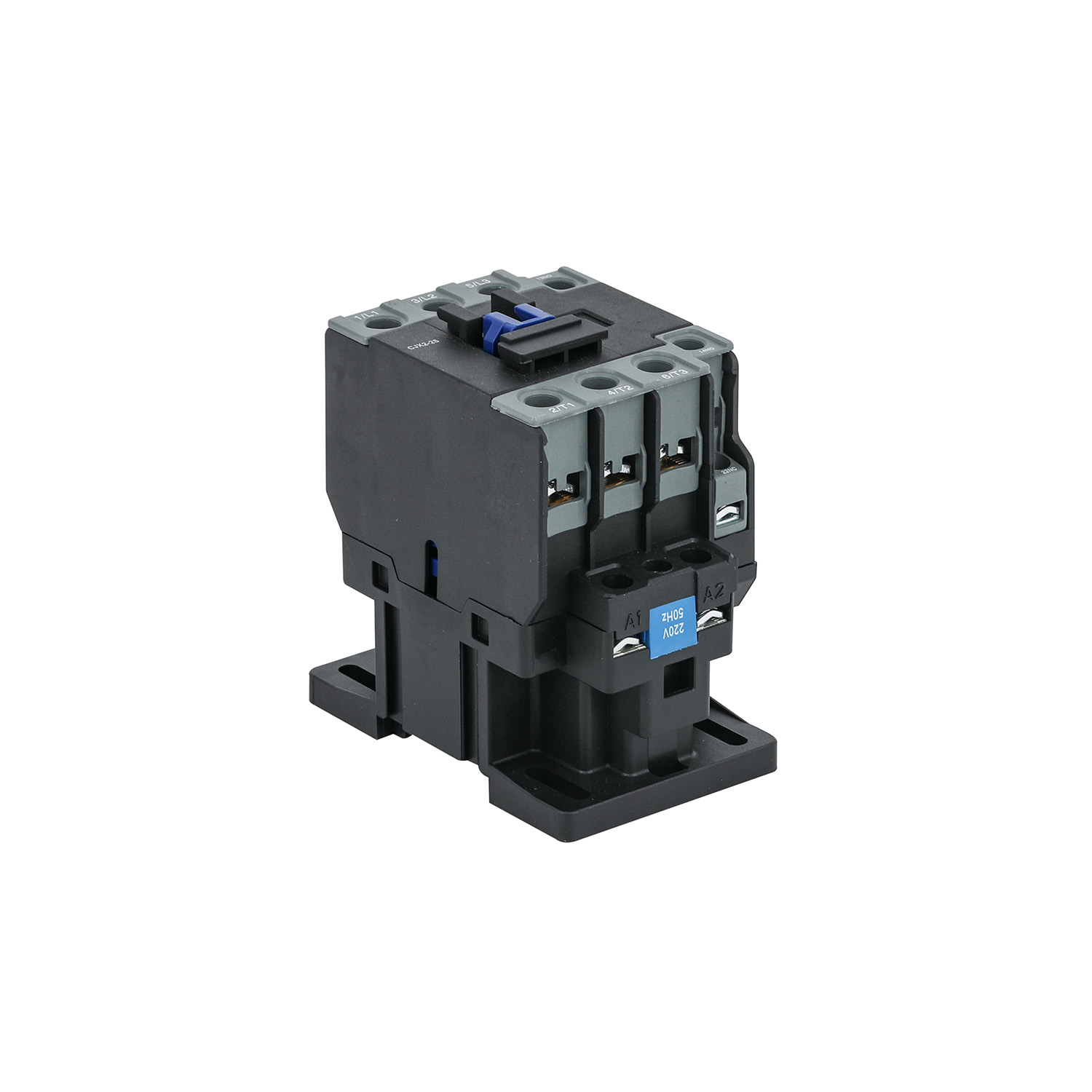

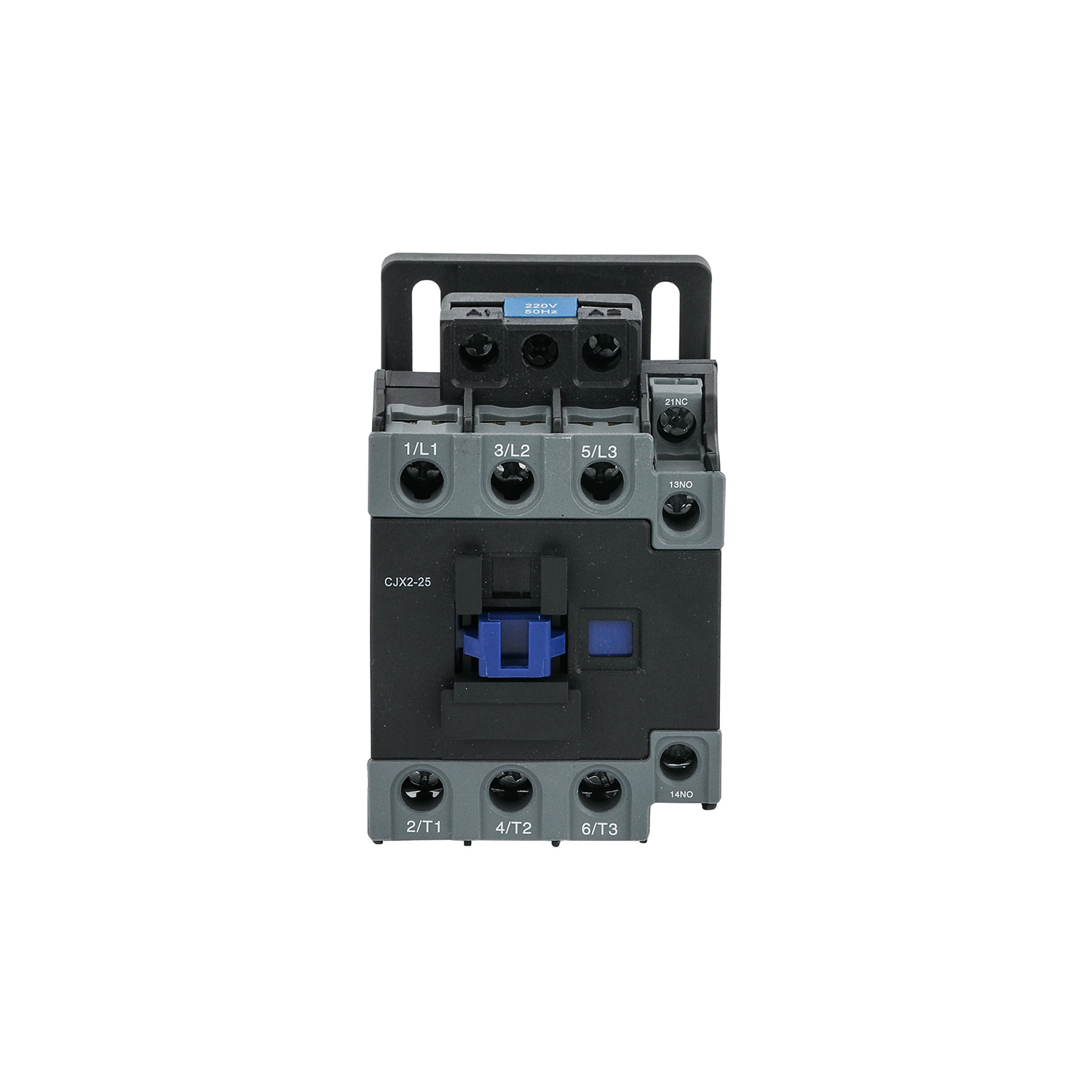

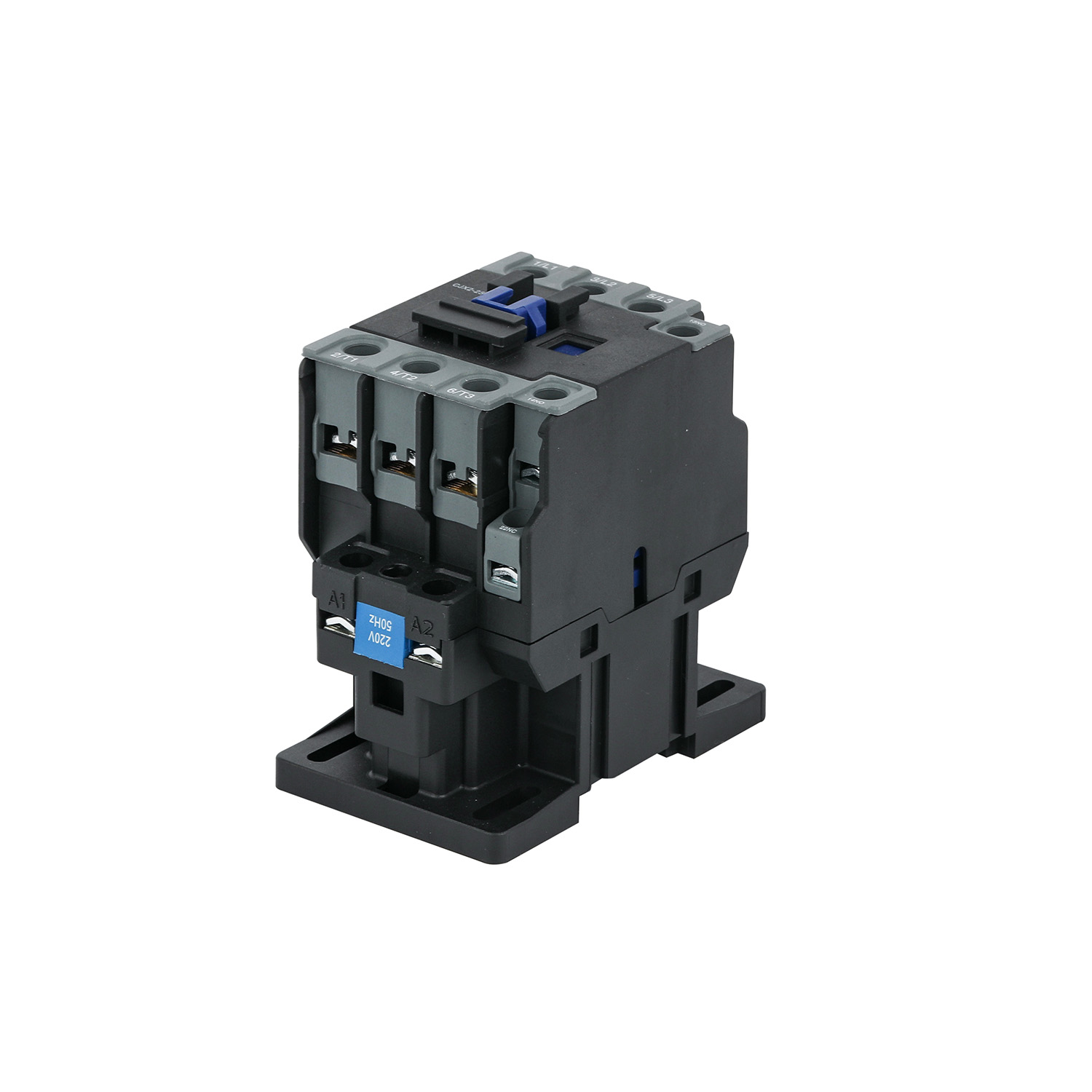

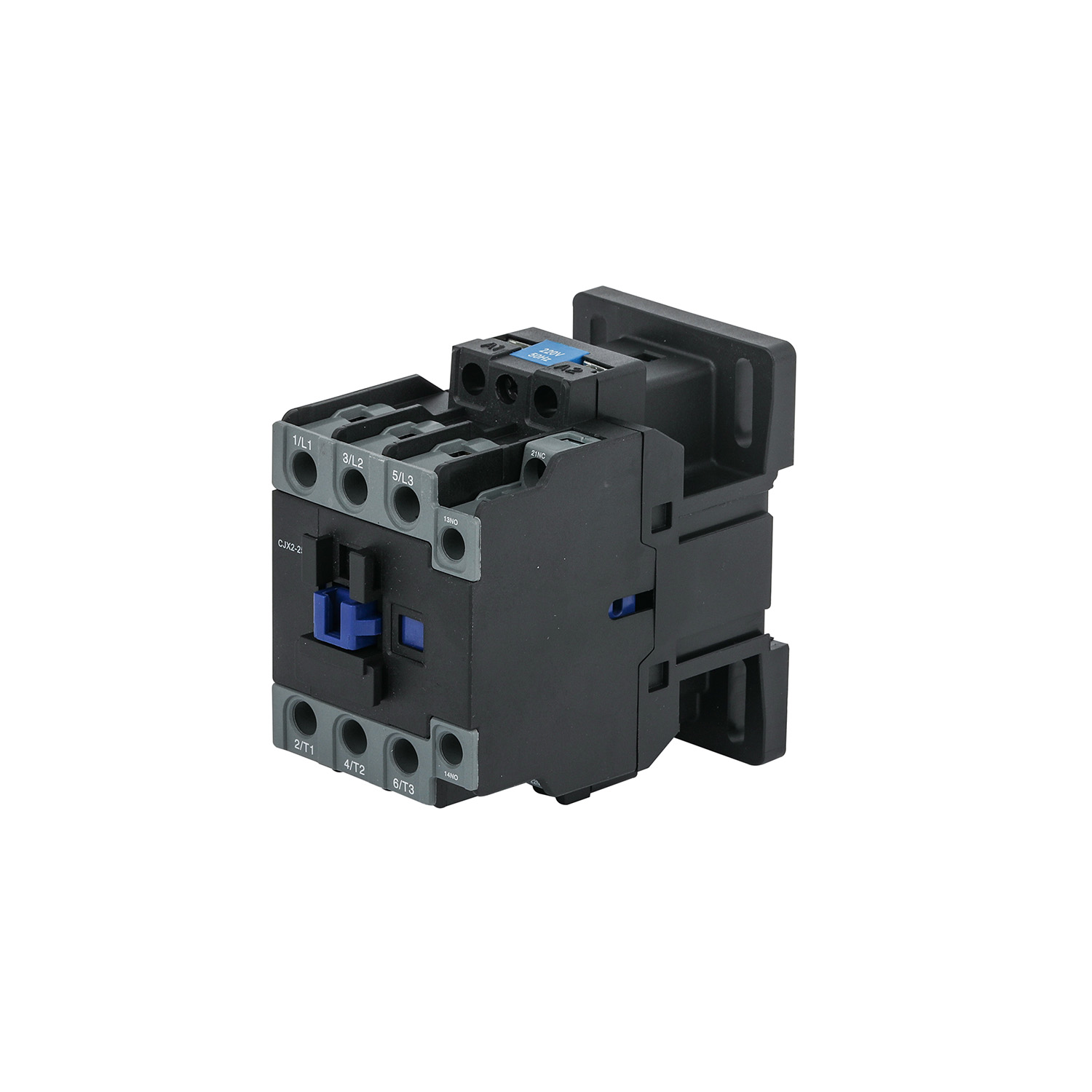

JXC2511 Magnetic ac contactors 220V
JXC2511 Magnetic ac contactors 220V
JXC2511 Magnetic ac contactors 220V
JXC2511 Magnetic ac contactors 220V
JXC2511 Magnetic ac contactors 220V

JXC2511 Magnetic ac contactors 220V

The new JXC AC contactors feature a novel appearance and a compact structure. They are

mainly used for frequent starts and control of AC motors as well as remote circuit making /

breaking.They can also be combined with appropriate thermal overload relays to form

electromagnetic starters.

Compliant standards: IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1.

    Contact us
    Product Details

    product detail

    Type Rated
    insulation
    voltage(V)    		 Conventional
    thermal
    current(A)    		 Rated
    operation
    current(A)    		 Control power(kw) No .of
    contacts    		 Remark
    220V 380V 415V 440V 660V
    JXC-0911 660 20 9 2.2 4 4 4 5.5 3P+NO
    3P+NC    		 Installation
    method
    1.with two
    screws
    2.35mm
    din rail
    JXC-1211 20 12 3 5.5 5.5 5.5 7.5 3P+NO
    3P+NC
    JXC--1811 32 18 4 7.5 9 9 9 3P+NO
    3P+NC
    JXC-2511 40 25 5.5 11 11 11 15 3P+NO
    3P+NC
    JXC--3211 50 32 7.5 15 15 15 18.5 3P+NO
    3P+NC
    JXC-4011 60 40 11 18.5 22 22 30 3P+NO+NC Installation
    method
    1.with three
    screws
    2.75mm or
    35mm
    din rail
    JXC-5011 80 50 15 22 25 30 33
    JXC-6511 80 65 18.5 30 37 37 37
    JXC-8011 125 80 22 37 45 45 45
    JXC-9511 125 95 25 45 45 45 45
    Type JLC1D09 JLC1D12 JLC1D18 JLCD25 JLC1D32 JLC1D40 JLC1D50 JLC1D65 JLCD80 JLCD95
    Pick-up voltage
    50/60Hz(V)    		 (0.85~
    1.1)Us    		 (0.85~
    1.1) Us    		 (0.85~
    1.1)Us    		 (0.85~
    1.1)Us    		 (0.85~
    1.1)Us    		 (0.85~
    1.1)Us    		 (0.85~
    1.1)Us    		 (0.85
    ~1.1)Us    		 (0.85~
    1.1)Us    		 (0.85~
    1.1)Us
    Release voltage
    50/60Hz(v)    		 (0.2~
    0.75)Us    		 (0.2~
    0.75)Us    		 (0.2~
    0.75)Us    		 (0.2~
    0.75)Us    		 (0.2~
    0.75)Us    		 (0.2~
    0.75)Us    		 (0.2~
    0.75)Us    		 (0.2~
    0.75)Us    		 (0.2~
    0.75)Us    		 (0.2~
    0.75)Us
    Coil power 50Hz60Hz Pick-up(VA) 70 70 110 110 110 200 200 200 200 200
    Holding(VA) 8 8 11 11 11 20 20 20 20 20
    Pick-up(VA) 80 80 115 115 115 200 200 200 200 200
    Holding(VA) 8 8 11 11 11 20 20 20 20 20
    Power
    consumption
    (W)    		 1.8~2.7 1.8~2.7 3~4 3~4 3~4 6~10 6~10 6~10 6~10 6~10
