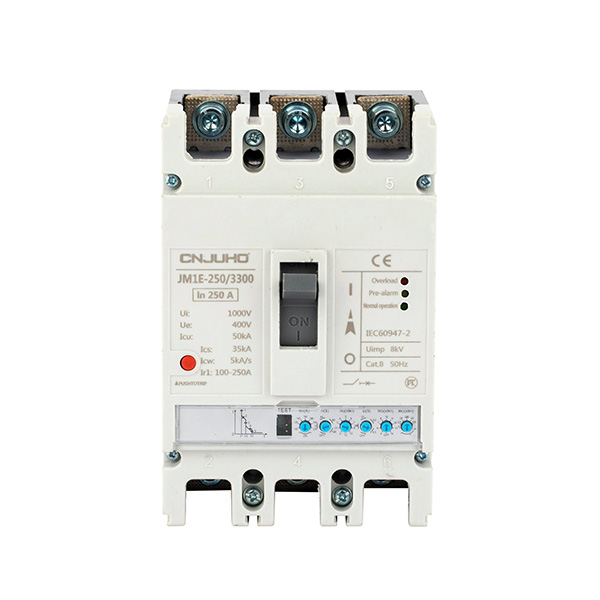

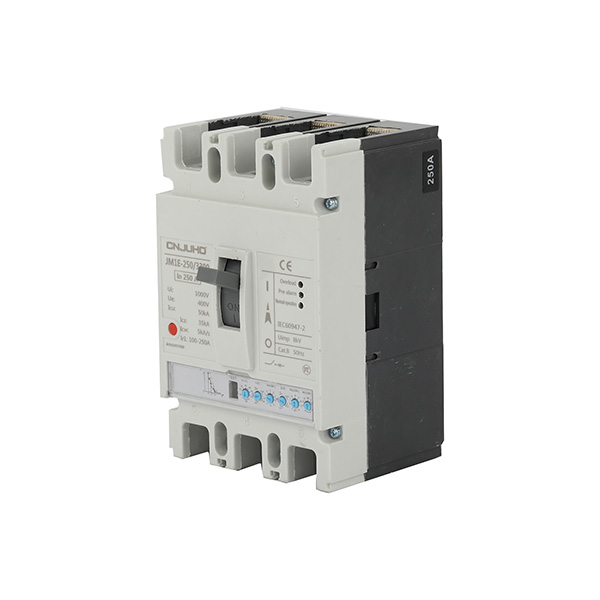

JM1-LE mccb earth leakage circuit breaker

JM1-225LE series earth leakage circuit breaker (herein after called circuit breaker)is applied for the power distribution network of AC 50Hz,rated current 630A.The circuit breaker can protect people against indirect contact with dangerous electric current and prevent fire disaster caused by insulation fault and single-phase ground fault. It can be used to distribute electric power and protect power equipment against overload and short circuit. The circuit breaker can change the circuit and start motor infrequently. The rated residual operating current and the maximum off-time can be adjusted on-site according to actual situation, the circuit breaker can be customized alarm function and no tripping function.

The YCM1LE complies with standard of IEC60947-2

Product Details

product detail

Type	Pole	Rated current (A)	Rated insulation voltage (V)	Rated operation voltage (V)	Arcing-over Distance (mm)	Ultimate short-circuit Breaking capacity (KA)	Service short-circuit Breaking capacity (KA)	Operation performance	Utilization category
JM1-63L	3P/4P	6,10,16,20,25 32,40,50,63	660	380	0	25	18	1500	8500
JM1-63M	3P/4P	6,10,16,20,25 32,40,50,63	660	380	0	50	35	1500	8500
JM1-100L	3P/4P	10,16,20,25,32,40,50,63,80,100	660	380	0	35	22	1500	8500
JM1-100M			660	380	≤50	50	35	1500	8500
JM1-100H			660	380	≤50	85	50	1000	7000
JM1-225L	3P/4P	100, 125, 160, 180, 200, 225	660	380	≤50	35	22	1000	7000
JM1-225M			660	380	≤50	50	35	1000	7000
JM1-225H			660	380	≤50	85	50	1000	7000
JM1-400L	3P/4P	225, 250, 315, 350, 400	660	380	≤50	50	35	1000	4000
JM1-400M			660	380	≤50	65	42	1000	4000
JM1-400H			660	380	≤50	65	42	1000	4000
JM1-630L	3P	400, 500, 630	660	380	≤100	50	35	1000	4000
JM1-630M			660	380	≤100	65	42	1000	4000
JM1-630H			660	380	≤100	65	65	1000	4000
JM1-800M	3P	630, 700, 800	660	380	≤100	75	50	1000	4000
JM1-800H	3P	630, 700, 800	660	380	≤100	100	65	1000	4000
JM1-1250M	3P	1000, 1250	660	380	≤100	100	65	1000	4000
JM1-1250H	3P	1000, 1250	660	380	≤100	125	75	1000	4000
JM1-1600M	3P	1600	660	380	≤100	150	80	1000	4000
