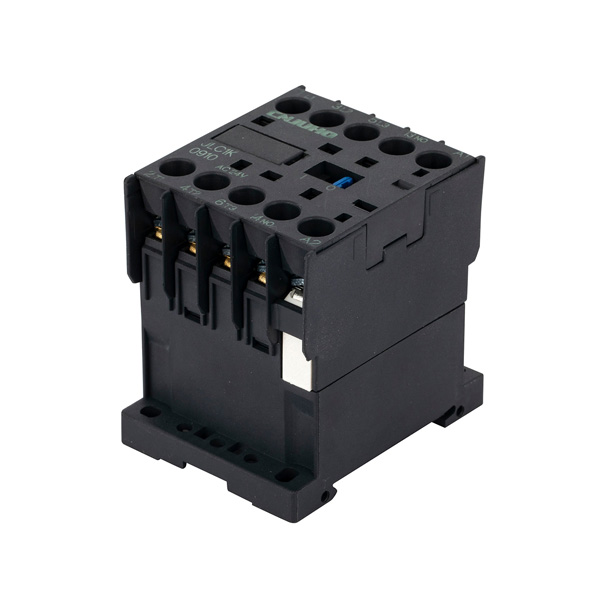

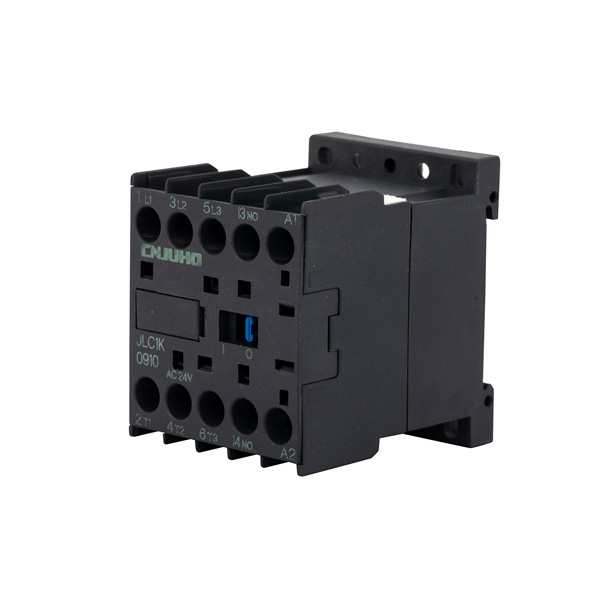

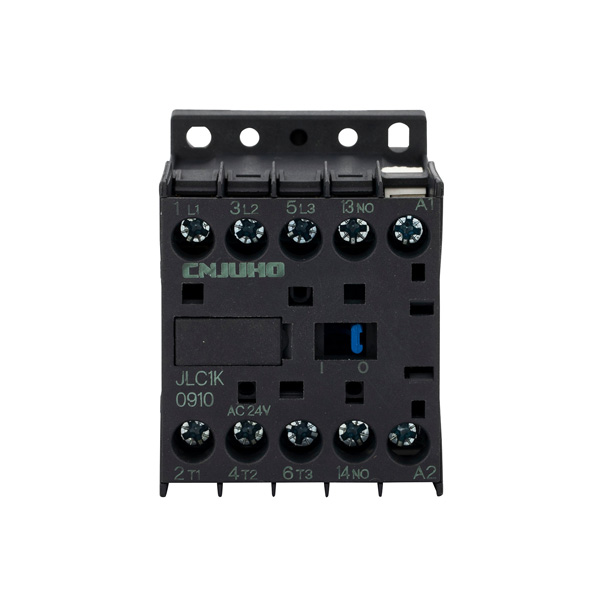

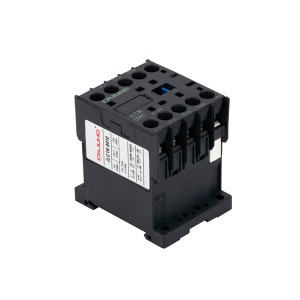

JLC1-K mini AC Contactor 9A~12A

Short Description:

JLP1-K series of DC contactor is used in ac circuit of 50Hz/60Hz, rated voltage up to 690V, rated current up to 12A, to connect/disconnect or other frequent control of the main circuit and ac motors. They can be conveniently connected to auxiliary contacts and proper thermal relays to protect circuit from overloading. They feature traverse double breaking points, block and zero flash over design, with multi-function combination, small volume, and reliable performance. It can be widely applied to magnify/switch signal in micro-electronic interface.

Send email to us

Product Detail

More Description

Product Tags

Main Parameter And Technical Characteristic

Type	Rated operational current(380A)	AC-3use group				contact number(1)
		Control power KW
		220V	380/415V	440/500V	600V
JLP1-K06	6	1.5	2.2	3	3	3P+NC 3P+NO
JLP1-K09	9	2.2	4	4	4	3P+NC 3P+NO
JLP1-K09	12	3	5	5	5	3P+NC 3P+NO

Type/Parameters		JLP1-K06	JLP1-K09	JLP1-K12
AC-3use group rated working current A	380V	6	9	12
	660V	5	7.5	10
Conventional thermal current (1th) V		16	20	20
Rated working voltage(Ue) V		380 660
Rated insulation voltage(Ui) V		390

Outline And Mounting Dimension

FIGURE 1 JLC1-K06~K12

FIGURE 2 JLC1-K06N~K12N

Ordering Instructions

When placing an order ,you should point out the below:
1. Product name and model, rated operational voltage and frequency of coil, order quantity.
Ordering example: JLC1-K0910 AC 220V 50Hz 10PCS

Previous: Mechanical Interlocked AC Contactor

Next: LS series AC contactor 9A~85A

Contactor production engineering:
1.Excellent shell material
2.Cooper part with 85% silver contact point
3.Standard cooper coil
4.High quality magnet
5.Beautiful packing box
