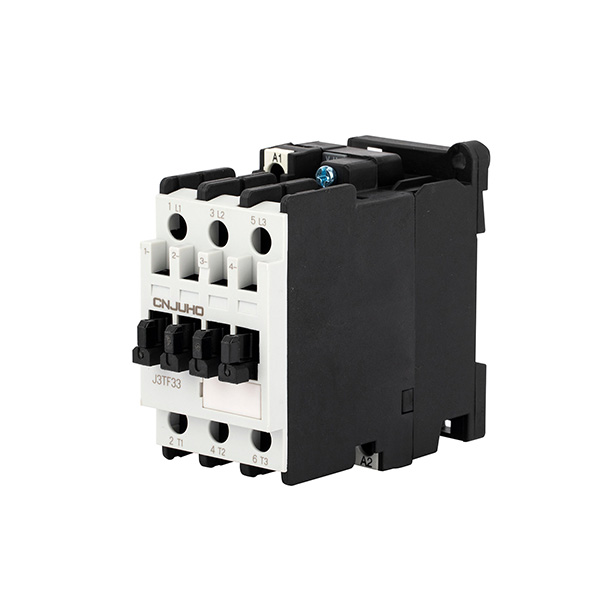

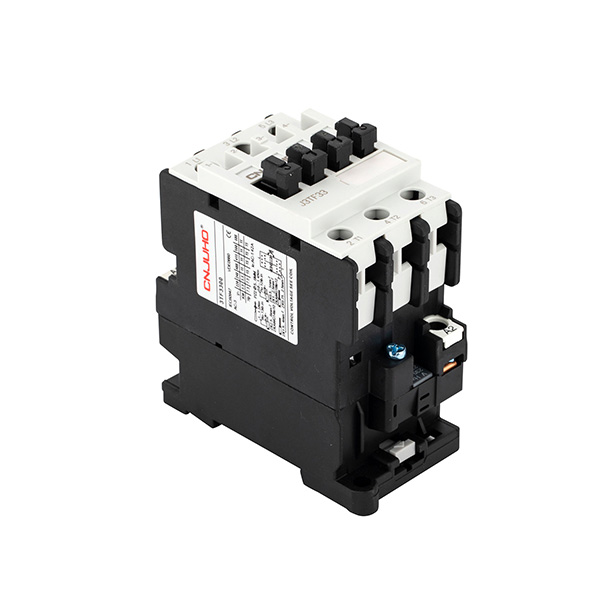

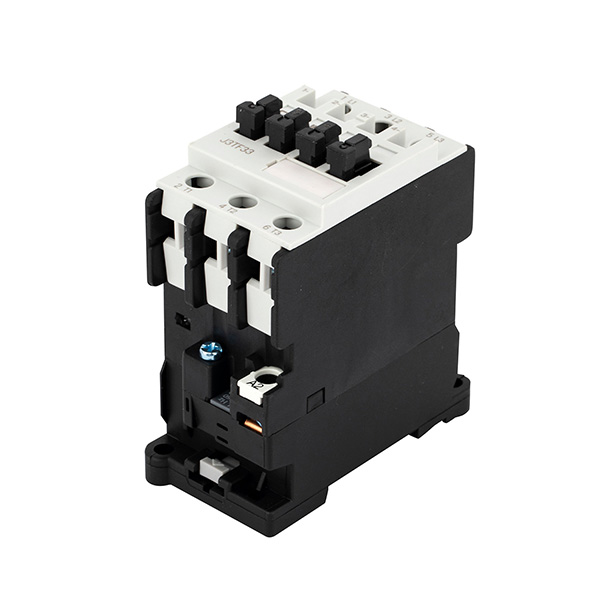

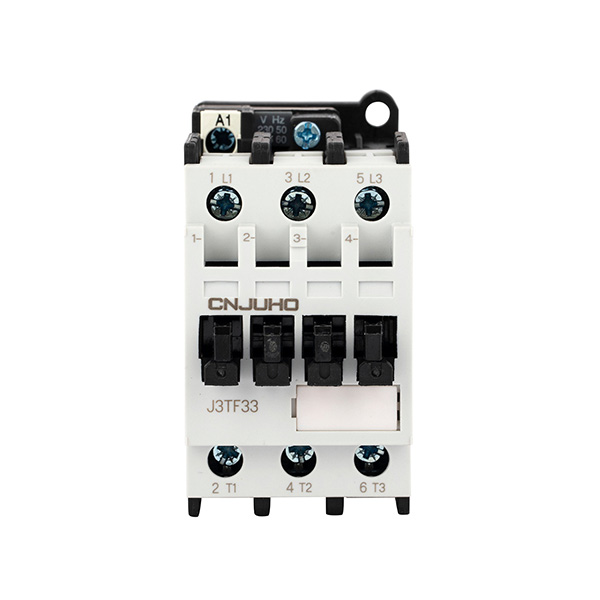

J3TF32/33 AC contactor with 220V/380V

1. Disposal

Siemens products are environment friendly, which predominantly consist of recyclable material for disposal we recommend disassembling and separation into following materials

Metal:Segregate into ferrous & non ferrous types for recycling through author land dealer

Plastic: Segregate as per material type for recycling through author land dealer because of the long life time of Siemens products the disposal guidelines may be replaced by other national regulations when taking the products out of service. The local customer care service is available at any time to answer disposal-related questions

2.Codes for AC coils

3.ON/OFF Indication

4.Installation:

Mounting dimensions (mm)

5.Allowable conductor sizes:

Permissible cross-sections for main auxiliary conductors solid

Finely stranded with end sleeve          2x0.5 to 1mm

AWG wires:                          2 x 1 to 2.5mm

Tightening torque standard type:         1x 4mm

                                    2x 0.75 to 2.5mm

                                    2x AWG 18-12

                                    0.8 to 1.4Nm/7 to 12 Lb-in

Tightening torque auxiliary contact block   0.8 to 1.1Nm/7 to 12Lb-in

6.Circuit diagrams:

7.Maintenance:

The following components can be replaced and available as spares

Magnet coil, main contacts, single pole auxiliary contact block 3TX40 only use of original spare parts ensures the operational safety of the contactors

Coil replacement
