Best quality High Quality Magnetic AC Type RCCB 2p 16 to 40A China Circuit Breaker

Short Description:

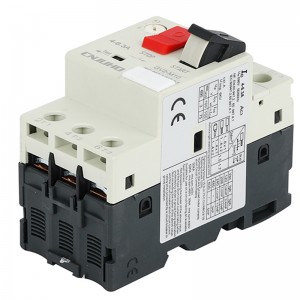

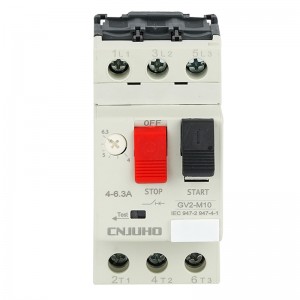

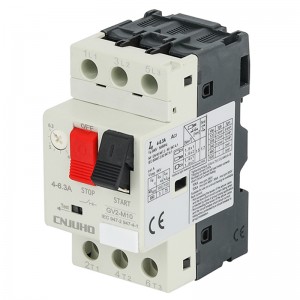

JGV2 series is a motor protection circuit breaker, adopting modular design, beautiful appearance, small size, phase failure protection, built-in thermal relay, strong functionality and good versatility. JGV2 series comply with IEC60947.2 and EC60947-4.1 and EN60947-1 standards. Kaitian and contactor can form a direct motor starter. The enclosure protection grade of JGV2 series can reach IP65. There are three types of products in this series: JGV2-M and ME are button-controlled motors with thermal-magnetic protective circuit breakers; JGV2-RS are transfer switch-controlled motors with thermal-magnetic protective circuit breakers; JGV2-LS, LE are transfer switch control The motor with magnetic protection circuit breaker (without thermal delay protection).

Send email to us

Product Detail

More Description

Product Tags

We persist with our business spirit of “Quality, Effectiveness, Innovation and Integrity”. We aim to create a lot more value for our consumers with our wealthy resources, sophisticated machinery, experienced workers and outstanding providers for Best quality High Quality Magnetic AC Type RCCB 2p 16 to 40A China Circuit Breaker, Hope we can easily generate a more glorious potential along with you by means of our endeavours within the long run.
We persist with our business spirit of “Quality, Effectiveness, Innovation and Integrity”. We aim to create a lot more value for our consumers with our wealthy resources, sophisticated machinery, experienced workers and outstanding providers for China Circuit Breaker, Mccb, Motor Protector, RCCB, If any product meed your demand, please feel free to contact us. We’re sure your any inquiry or requirement will get prompt attention, high-quality products and solutions, preferential prices and cheap freight. Sincerely welcome friends all over the world to call or come to visit, to discuss cooperation for a better future!

Technical Characteristic

Type	Rated current of trip unit In(A)	Setting current adjustment range (A)	Rated ultimate short-circuit breaking capacity lcu (kA), rated operating short-circuit breaking capacity lcs (kA)										Arcing distance (mm)
			230/240V		400/415V		440V		500V		690V
			Icu	Ics	Icu	Ics	Icu	Ics	Icu	Ics	Icu	Ics
	0.16	0.1-0.16	100	100	100	100	100	100	100	100	100	100	40
	0.25	0.16-0.25	100	100	100	100	100	100	100	100	100	100	40
JGV2-32	0.4	0.25-0.4	100	100	100	100	100	100	100	100	100	100	40
	0.63	0.4-0.63	100	100	100	100	100	100	100	100	100	100	40
	1	0.63-1	100	100	100	100	100	100	100	100	100	100	40
	1.6	1-1.6	100	100	100	100	100	100	100	100	100	100	40
	2.5	1.6-2.5	100	100	100	100	100	100	100	100	3	2.25	40
	4	2.5-4	100	100	100	100	100	100	100	100	3	2.25	40
	6.3	4-6.3	100	100	100	100	50	50	50	50	3	2.25	40
	10	6-10	100	100	100	100	15	15	10	10	3	2.25	40
	14	9-14	100	100	15	7.5	8	4	6	4.5	3	2.25	40
	18	13-18	100	100	15	7.5	8	4	6	4.5	3	2.25	40
	23	17-23	50	50	15	6	6	3	4	3	3	2.25	40
	32	24-32	50	50	15	6	6	3	4	3	3	2.25	40
JGV3-80	40	25-40	-	-	35	17.5	-	-	-	-	4	2	50
	63	40-63	-	-	35	17.5	-	-	-	-	4	2	50
	80	56-80	-	-	35	17.5	-	-	-	-	4	2	50

Rated power of the three-phase motor controlled by the circuit breaker (see Table 2)

Type	Rated current of trip unit In(A)	Rated current adjustment range (A)	Standard rated power of three-phase motor (kW)
			AC-3, 50Hz/60Hz
			230/240V	400V	415V	440V	500V	690V
	0.06	0.1-0.16	-	-	-	-	-	-
	0.25	0.6-0.25	-	-	-	-	-	-
JGV2-32	0.4	0.25-0.4	-	-	-	-	-	-
	0.63	0.4-0.63	-	-	-	-	-	0.37
	1	0.63-1	-	-	-	0.37	0.37	0.55
	1.6	1-1.6	-	0.37	-	0.55	0.75	1.1
	2.5	1.6-2.5	0.37	0.75	0.75	1.1	1.1	1.5
	4	2.5-4	0.75	1.5	1.5	1.5	2.2	3
	6.3	4-6.3	1.1	2.2	2.2	3	3.7	4
	10	6-10	2.2	4	4	4	5.5	7.5
	14	9-14	3	5.5	5.5	7.5	7.5	9
	18	13-18	4	7.5	9	9	9	11
	23	17-23	5.5	11	11	11	11	15
	32	24-32	7.5	15	15	15	18.5	26
JGV3-80	40	25-40	-	18.5	-	-	-	30
	63	40-63	-	30	-	-	-	45
	80	56-80	-	37	-	-	-	55

The enclosure protection level is: IP20;
The operating performance of the circuit breaker (see Table 3)

Type	Frame rated current Inm(A)	Operating cycles per hour	Operation cycle times
Type	Frame rated current Inm(A)	Operating cycles per hour	Power ups	No power	Total
1	32	120	2000	10000	12000
2	80	120	2000	10000	12000

Outline and Mounting Dimension
