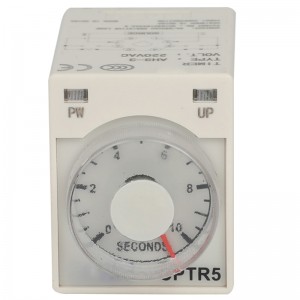

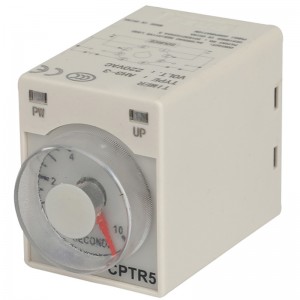

Timer relay AH3-3
product detail
| Voltage | DC12V-48V AC12V-380V50HZ |
| Power expend | DC1.0W AC1.0VA |
| Control output | 5A220VAC |
| Insulation Resistance |
DC500V 100MQ |
| Dielectric Strength | BCC1500VAC BOC1000VAC |
| Operating Temperature |
•10P~50°C |
| Huminity |
35%~85% |
| Life | Mech:107 Elec:103 |
| Weight |
=160g |
Time range
|
Nominal Time |
Time range | Nominal Time |
Time range |
|
1s |
0.1S-1S |
6m |
0.3m-6m |
|
2s |
0.1S-2S |
12m |
0.6m~12m |
|
3s |
0.1S~3S |
30m |
1m~30m |
|
6s |
0.2S-6S |
60m |
2m-60m |
|
10s |
0.6S-10S | 3h |
0.1h~3h |
|
30s |
1.0S~30S | 6h | 0.2~6h |
|
60s |
2.0S~60S | 10h |
0.25~10h |
|
2m |
5.0S~2m |
24h |
0.8~24h |
|
3m |
0.1m~3m |
30h | 1~30h |
