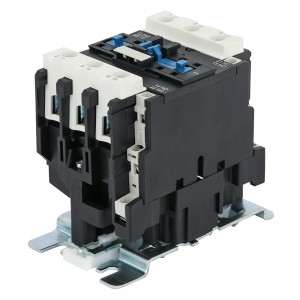

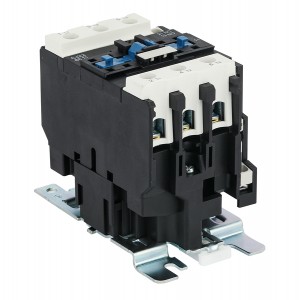

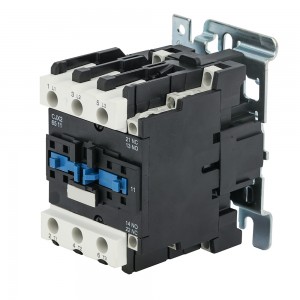

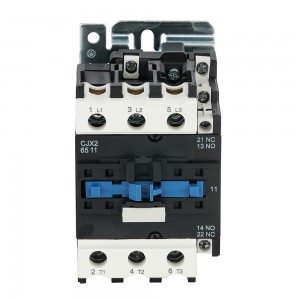

AC Contactor LC1-D9511 95A 220V

Short Description:

Application: Remote making & breaking circuits; protect circuit from over-load when assembling
with thermal over-load relay;frequent start-up and control of AC contactor;
Shipping way
By sea, by air, by express carrier


Product Detail

Product Tags

Type Designation

product

 Technical Parameter

Midel 2 Cabling cross Section(cu) Screw size Tighteningtorque(N. m)
Numbet of piece Flexible cable with cold-prossed socKet(mm2) Flexible cable without cold-pressed socket(mm2) lnflekible cable(mm2)
JLC1-09 1-2 2.5 4

4

M3.5 0.8
JLC1-12 1-2 2.5 4

4

M3.5 0.8
JLC1-18 1-2 4 6

6

M3.5 0.8
JLC1-25 1 4 10

6

M4 1.2
2 4 6

6

M4 1.2
JLC1-32 1 4 10

6

M4 1.2
2 4 6

6

M4 1.2
JLC1-40 1 10 16

10

M4 3.5
2 10 10

10

M8 3.5
JLC1-50 1 16 25

25

M8 3.5
2 16 16

-

M8 3.5
JLC1-65 1 16 25

25

M8 3.5
2 16 16

-

M8 3.5
JLC1-80 1 50 50

50

M8 3.5
2 25 35

-

M10 4.0
JLC1-95 1 50 20

50

M10 4.0
2 25 35

-

M10 4.0

 Overall And Mounting Dimensions (mm)

product6
